Power Rating (kW):1.5 kW
Voltage (VAC):200 V
Servomotor Type:Flat
Rated Speed (RPM):6,000 RPM
Maximum Speed (RPM):10,000 RPM
Mounting Type:Flange Mount
Encoder Type:Incremental Encoder
Bit Resolution:17 BIT
Constant Torque (Nm):3.5 Nm
Peak Torque (Nm):10.5 Nm
Brake:Yes
IP Rating:IP67
Approvals:UL, CE, cUL Recognized

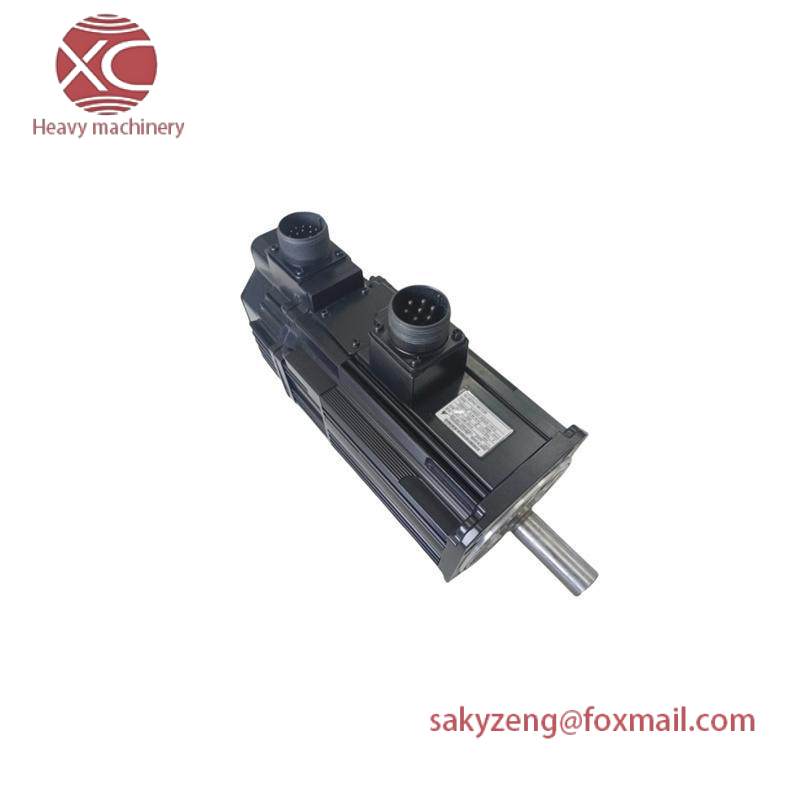

Engineered with advanced materials and cutting-edge technology, the Yaskawa SGMSS-20A2A-YR12 Servo Motor delivers exceptional performance and reliability in challenging industrial settings.
Featuring a compact design and high-resolution encoder, this motor ensures precise control and minimizes setup time, enhancing overall system efficiency.
Equipped with a robust brake system, it ensures smooth operation and safety in various applications, from packaging lines to robotic systems.
Designed for easy integration into existing systems, the Yaskawa SGMSS-20A2A-YR12 Servo Motor supports a wide range of protocols, making it compatible with most control systems.
With an IP67 rating, this motor can withstand harsh environmental conditions, including dust and water exposure, ensuring continuous operation in demanding environments.
