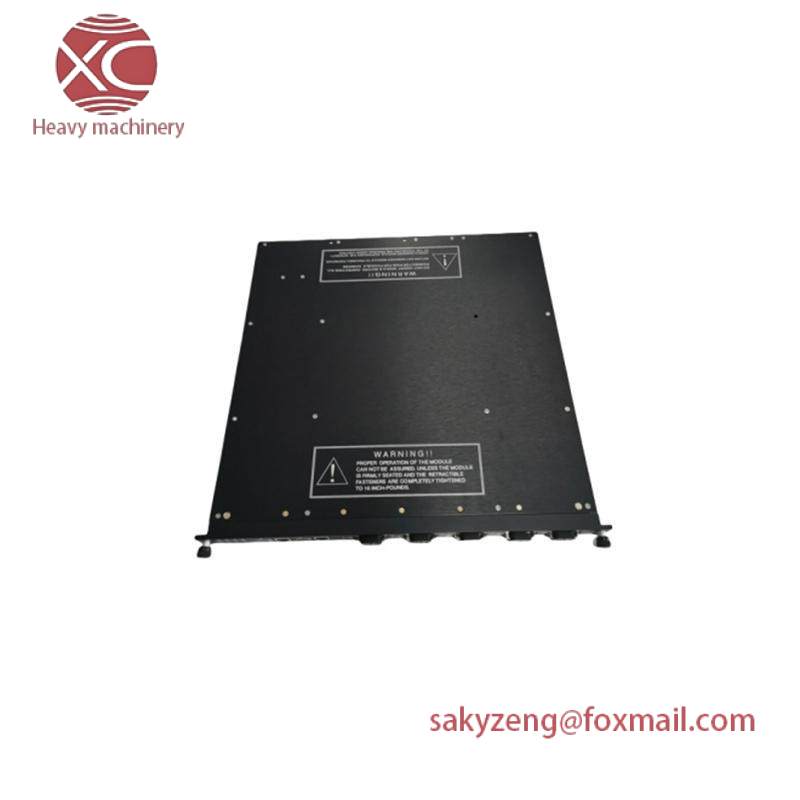

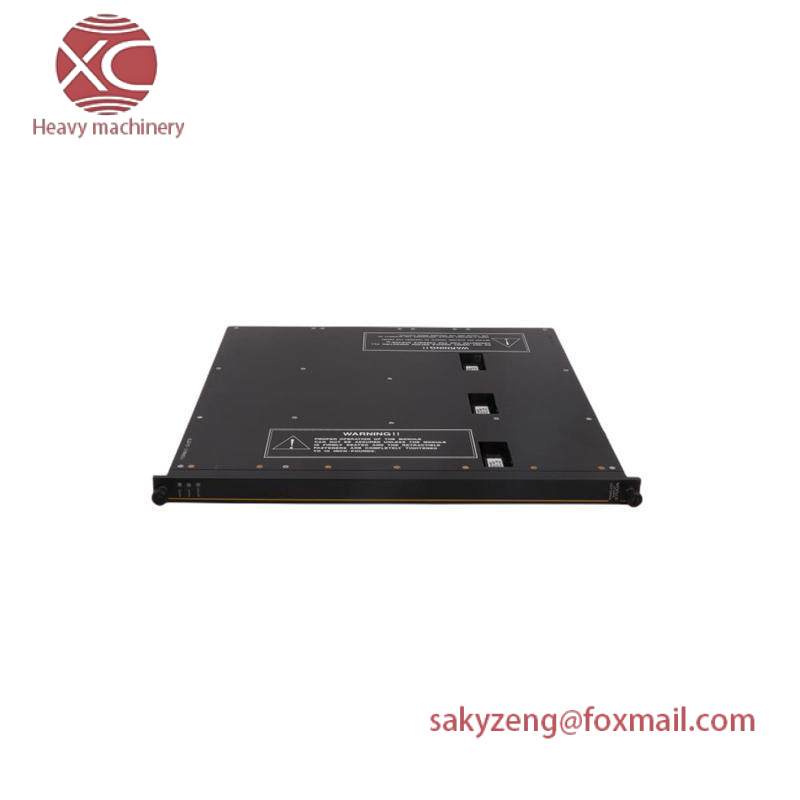

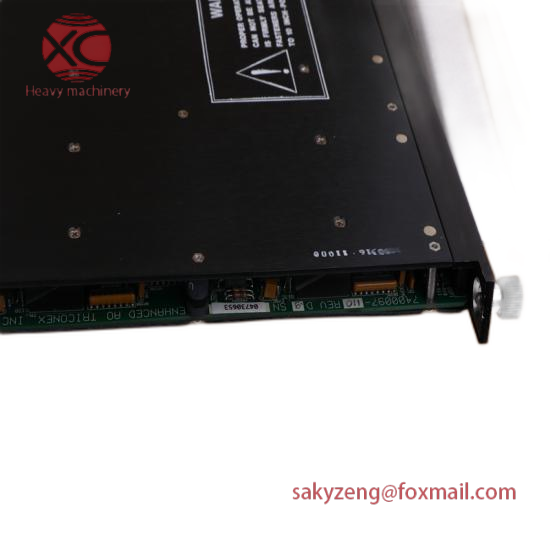

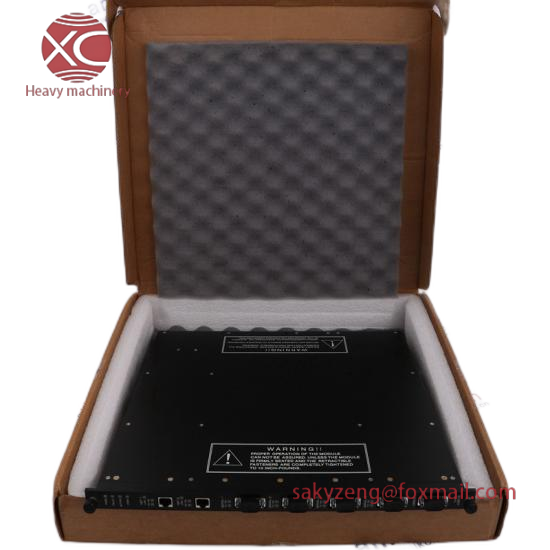

TRICONEX 3700A Analog I/O Module

In stock

The TRICONEX 3700A is a high-performance, triple modular redundant (TMR) analog input module designed for industrial automation systems. It offers precise measurement and reliable performance in harsh environments, making it ideal for applications requiring stringent safety standards.

Model Number:3700/3700A

Manufacturer:TRICONEX

Type:TMR, AI (Analog Input)

Voltage:0-5V, + 6%

Input Points:32, diff, DC coupled

Isolated Points:No

Input Update Rate:55 ms

Resolution:12 bits

Accuracy:< .15% of FSR, from 0° to 60°C

Input Resistance (load):30 MΩ (DC), min.

Power-Off Resistance:30 KΩ (DC), typical

Common Mode Rejection:-80 dB (DC-100Hz), typical

Common Mode Range:-12V to +12V peak

Leg-to-Leg Isolation:200 KΩ, typical

Normal Mode Rejection @ 8Hz:-3 dB

Normal Mode Rejection @ 60Hz:-17 dB

Normal Mode Rejection @ 120Hz:-23 dB

The TRICONEX 3700A Analog Input Module is an essential component for industrial control systems requiring high reliability and precision.

This module leverages TMR technology to deliver superior performance and fault tolerance, making it ideal for safety-critical applications.

With 32 differential input channels, the module supports a wide range of sensor inputs and provides accurate measurements across various environmental conditions.

Its robust design ensures stable operation even under harsh industrial environments, making it a trusted choice for engineers and system integrators.
