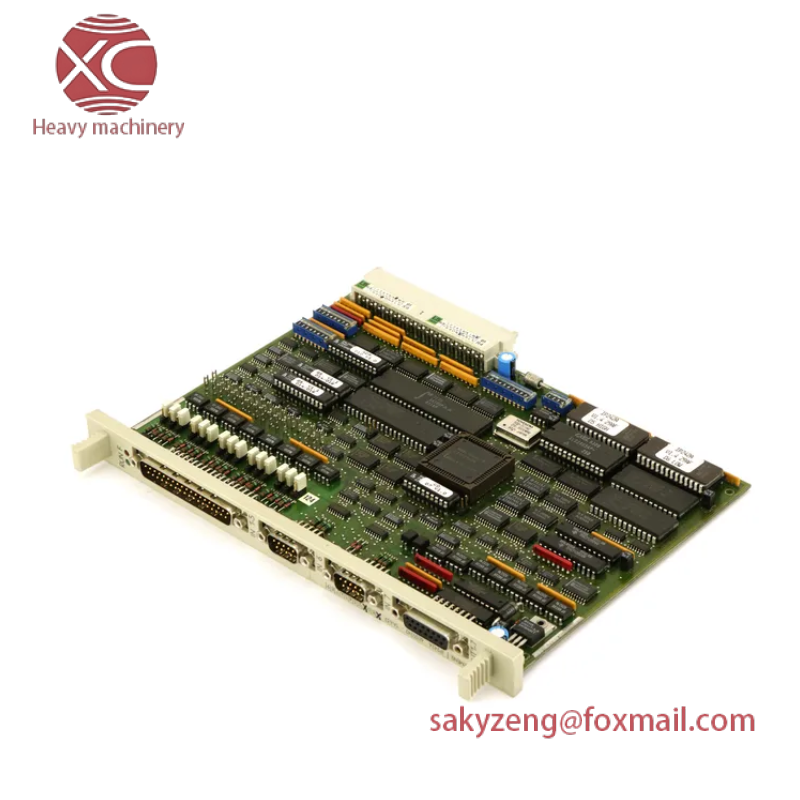

SIEMENS 6ES5242-1AA32 IP242 Counter Module: High-Speed Pulse Acquisition & Preprocessing for S5 Systems

Module Type:Counter Module

Model Number:6ES5242-1AA32

Manufacturer:SIEMENS

Application Range:S5-115U/-135U/-155U

Speed Limit:High-speed counting pulses

Environmental Protection Rating:IP24

Power Supply:AC/DC

Input Channels:4

Output Channels:2

Operating Temperature:-25°C to +60°C

Storage Temperature:-40°C to +85°C

Dimensions:120mm x 120mm x 114mm

Weight:0.4kg

    Integrating cutting-edge technology, the SIEMENS 6ES5242-1AA32 IP242 Counter Module is engineered to meet the stringent demands of high-speed counting applications in manufacturing environments. Its precision measurement capabilities significantly enhance operational efficiency by accurately capturing and processing counting pulses from various sources.

    Featuring an operating voltage of DC 24V, this module ensures compatibility with a wide range of industrial control systems, guaranteeing seamless integration and operation under diverse power conditions.

    With a counting capacity of up to 100,000,000 pulses, the module is capable of handling even the most demanding counting tasks, making it ideal for applications requiring extensive data processing.

    Equipped with a response time of less than 1ms, the module ensures rapid processing of incoming pulses, enabling quick decision-making and real-time system adjustments.

    The input impedance of 2kΩ is specifically designed to minimize signal loss and maintain accuracy, even when dealing with high-frequency signals.

    Offering a combination of relay outputs (1 NO + 1 NC), the module provides robust switching capabilities suitable for various industrial control scenarios, ensuring reliability and safety in critical applications.

    Protected by IP24 environmental standards, the module is designed to withstand dust and splashes of water, ensuring durability and longevity in harsh industrial settings.

    The panel mount design facilitates easy installation and integration into existing control panels, minimizing the need for additional mounting hardware and streamlining system setup.

    Optimized for performance and reliability, the SIEMENS 6ES5242-1AA32 IP242 Counter Module is a trusted solution for enhancing productivity and accuracy in high-speed counting applications within the industrial control sector.
