Number of Connections:256
Weight (Max):171 g
Dimensions (W x H x D):35 x 130 x 101 mm
Transmission Media:Shielded Twisted-Pair Cable
Current Consumption (Max):410 mA at 5V DC
Process Value Alarms:Supported
Rate-of-Change Calculations:From Temperature and Analog Inputs
Analog Output Limits:Calculated for Rate-of-Change and High/Low Outputs
Peak/Bottom Hold:Available
DIN Rail Mounting:Compatible for Easy Installation
Total Serial Communication Ports:Up to 32 with Additional Units

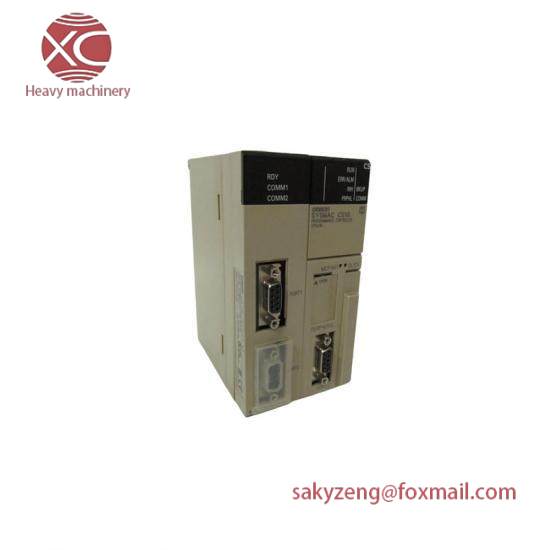

Unmatched Compatibility: The OMRON CS1W/CS1G Communications Board SCB21-V1 & CPU44H seamlessly integrates with the CS1 series, offering unparalleled compatibility for a wide range of industrial control applications.
Efficiency and Cost-Effectiveness: Designed with dramatic reductions in installation costs, space, and setup steps, this module eliminates the need for external setters and converters, streamlining your industrial setup.
Advanced Communication Capabilities: Execute process value alarms and rate-of-change calculations from temperature and analog inputs, ensuring precise control and monitoring. Rate-of-change limits and high/low output limits are calculated for analog outputs, enhancing system reliability.
DIN Rail Design: The modular design allows mounting up to 16 CPU bus units on the CPU rack or expansion racks, creating systems with up to 32 serial communications ports, optimizing your network architecture.
Enhanced Data Transfer: With the option to connect an NT-AL001 RS-232C/RS-442A Link Adapter to the RS-232C port, you can achieve 1:N communications, expanding connectivity options for your industrial network.
