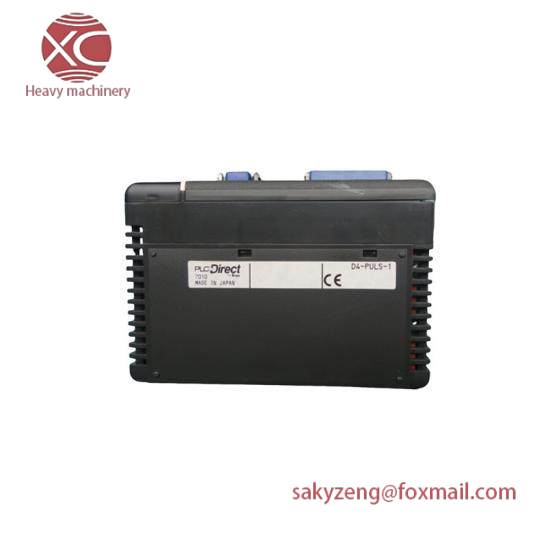

KOYO D4-PULS-1: Precision Single Axis Pulse Module, for Industrial Control Systems

Module Type:Single Axis Pulse

Model Number:D4-PULS-1

Operating Voltage:12-24V DC

Current Consumption:≤ 10mA

Output Channels:2

Pulse Frequency:Up to 10kHz

Resolution:1 µs

Environmental Temperature Range:-20°C to +70°C

Enclosure Rating:IP65

Dimensions:100mm x 50mm x 20mm

Weight:0.2kg

    The Koyo D4-PULS-1 Single Axis Pulse Module is a cutting-edge solution for applications requiring high precision and reliability in motion control. This module is specifically engineered for compatibility with various motion control systems, ensuring seamless integration and enhanced operational efficiency.

    Featuring a compact design and robust construction, it withstands challenging industrial environments, guaranteeing continuous performance over a wide temperature range. Its ability to handle up to 10 kHz pulse frequency makes it ideal for applications demanding rapid and precise movements.

    With its versatile application range from 1 to 5 VDC and low operating current of ≤ 50 mA, this module is energy-efficient and suitable for a broad spectrum of automation tasks. The output impedance of up to 1 kΩ ensures reliable signal transmission, even under varying loads.

    Designed with durability in mind, the Koyo D4-PULS-1 can operate within an ambient temperature range of -20°C to +85°C and can be stored in temperatures from -40°C to +85°C without degradation. Its ability to function in harsh conditions makes it a preferred choice for industries operating in extreme environments.

    Equipped with a relative humidity tolerance of 5% to 95% non-condensing, this module ensures consistent performance regardless of environmental moisture levels. This feature is particularly beneficial in applications where fluctuating humidity can impact system reliability.
