Invensys Triconex 3700A Analog I/O Module – Precision Control for Critical Processes

In stock

The Invensys Triconex 3700A Analog Input Module is a robust industrial-grade solution designed for high-precision data acquisition, ensuring reliability in harsh environments.

Manufacturer:Invensys Triconex

Model:3700A

Module Type:Analog Input

Input Voltage Range:0-5V, + 6%

Type:TMR

Number of Input Points:32, differential, DC coupled

Isolated Points:No

Input Update Rate:55 ms

Resolution:12 bits

Accuracy:<.15% of FSR, from 0° to 60°C

Input Resistance (Load):30 MΩ (DC), minimum

Power-Off Resistance:30 KΩ (DC), typical

Common Mode Rejection:-80 dB (DC-100Hz), typical

Common Mode Range:-12V to +12V peak

Leg-to-Leg Isolation:200 KΩ, typical

Normal Mode Rejection @ 8Hz:-3 dB

Normal Mode Rejection @ 60Hz:-17 dB

Normal Mode Rejection @ 120Hz:-23 dB

    The Invensys Triconex 3700A Analog Input Module is designed for high-performance data acquisition in demanding industrial environments. Its advanced TMR technology ensures exceptional accuracy and reliability, even under fluctuating conditions.

    With a wide range of input points, this module can seamlessly integrate with various sensors and transducers, making it ideal for a multitude of industrial applications. Its differential, DC coupled inputs offer enhanced noise immunity, ensuring clean signal acquisition.

    Featuring an impressive update rate of 55 ms, the 3700A module provides real-time data feedback, crucial for dynamic process control systems. The high-resolution 12-bit ADC guarantees precise measurements, minimizing errors and maximizing operational efficiency.

    The robust isolation features of this module safeguard against electrical interference, maintaining stable performance and preventing potential system failures. Its wide common mode range and excellent isolation characteristics make it suitable for a broad spectrum of industrial settings.

    Equipped with comprehensive protection against voltage spikes and overloads, the Invensys Triconex 3700A Analog Input Module ensures uninterrupted operation, even in harsh environments. Its user-friendly design facilitates easy integration and maintenance, minimizing downtime and maximizing productivity.

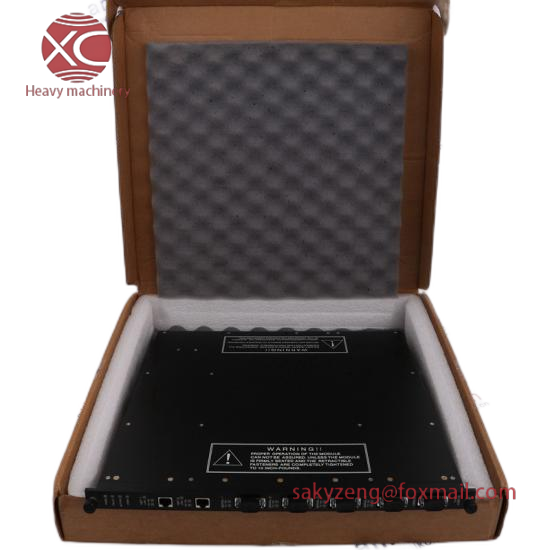

Invensys Triconex 3700A Analog Input Module
