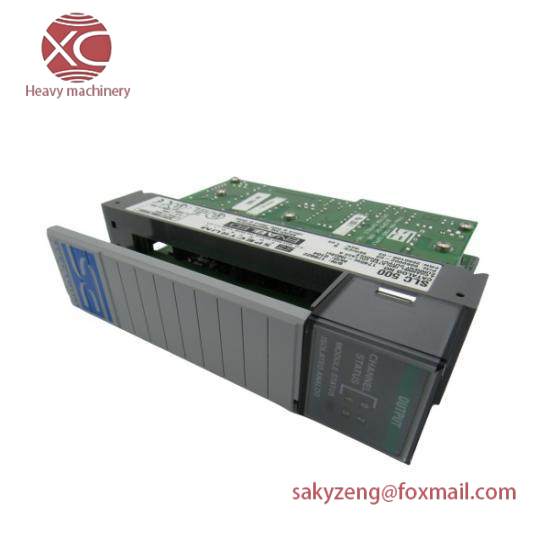

High-Performance 1746SC-INO4VI Volt Output SLC 500 Controller for Industrial Automation

Model Type:SLC 500

Model Number:1746SC-INO4VI

Manufacturer:Allen Bradley

Number of Channels:4 (Input), 4 (Output)

Input Type:Common Mode Voltage Range -20 To 20 V, Absolute Input Voltage +7.5 VDC / +7.5 VAC RMS (Max)

Output Range:-10 To 10 V – 1 LSB

Voltage Rating:Overvoltage Protection: 7.5 VAC RMS

Input Current:-30 To 30 MA (Max)

Output Current:-10 To 10 V – 1 LSB

Absolute Input Current:-30 To 30 MA (Max)

Absolute Output Current:-10 To 10 V – 1 LSB

Backplane Current Draw:55 MA

Environmental Conditions:5 – 95% Non-Condensing Relative Humidity

Temperature Rating:0 – 60 DEG C

    The Allen Bradley 1746SC-INO4VI is engineered to deliver unparalleled performance in industrial automation systems, featuring a high-resolution analog combination module that enhances the accuracy and reliability of voltage measurements.

    This versatile module supports both input and output functions, enabling seamless integration into complex control systems. Its ability to handle a wide range of voltage levels ensures compatibility with diverse industrial equipment.

    Designed with precision in mind, this module ensures that even the slightest variations in voltage are accurately captured and transmitted, facilitating more efficient and responsive automation processes.

    With its robust isolation capabilities and advanced overvoltage protection, the Allen Bradley 1746SC-INO4VI is built to withstand harsh industrial conditions, ensuring uninterrupted operation in challenging environments.

    Ideal for applications requiring high precision and reliability, such as process control, instrumentation, and monitoring systems, this module is a valuable addition to any industrial automation setup, offering unparalleled performance and ease of integration.
