Manufacturer:General Electric
Model:VSV0 H1B IS200VSVOH1BED
Functional Acronym:VSVO
Functional Description:VME Servo Board
Functional Revision:Revision 1 B
PCB Coating:Conformal Coating
Artwork Revision😀
Number of Connectors:6
Connector Types:[“Two backplanes (P1/P2,),”,”Four connectors with conductive traces (P3 through P6.)”]
Relays:4 relays (K1 through K4)
Components:[“Printed diagrams on top surface”,”Resistors, capacitors, TP test points”,”Inductor beads (L1-L10)”,”Over seventy integrated circuits”]
Power Status:Steady orange when powered up

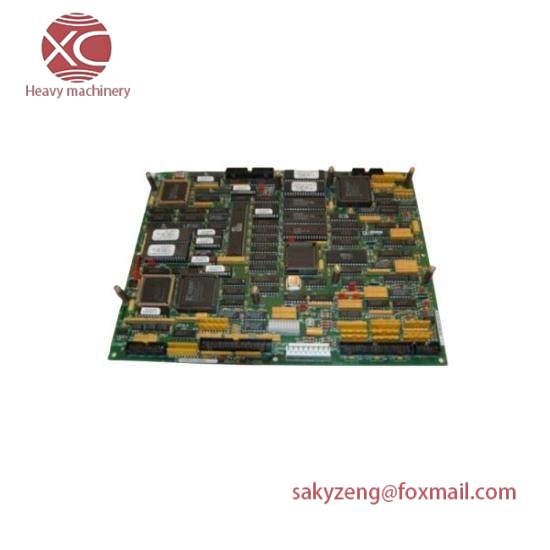

The GE VSV0 H1B IS200VSVOH1BED Control Board is a critical component in the industrial control system, specifically designed for the robust management of gas and steam turbines. Its conformal coating ensures durability and protection against environmental hazards.
Featuring a VME servo board architecture, it supports seamless integration with the Mark VI system, offering advanced control functionalities and enhanced operational reliability.
With six connectors, including two backplanes and four conductive trace connections, the board facilitates flexible and efficient data exchange, optimizing the overall performance of your industrial machinery.
Equipped with four relays (K1 through K4) and over seventy integrated circuits, this control board ensures precise control signals and enhanced system responsiveness, enabling smooth operation and maintenance.
The detailed diagram and markings on the top surface provide clear guidance for assembly and troubleshooting, ensuring ease of use and minimizing downtime in your operations.
