Model:IS200EACFG1BAA
Series:Speedtronic Mark VI
Type:Exciter AC Feedback Board
Functional Revision:1
Artwork Revision:C
Dimensions:110mm x 60mm x 6.7mm
Weight:0.14kg
Nominal Voltage Range:1000Vrms ±20% at 50/60Hz
Application:For use in industrial power generation systems requiring precise excitation control.

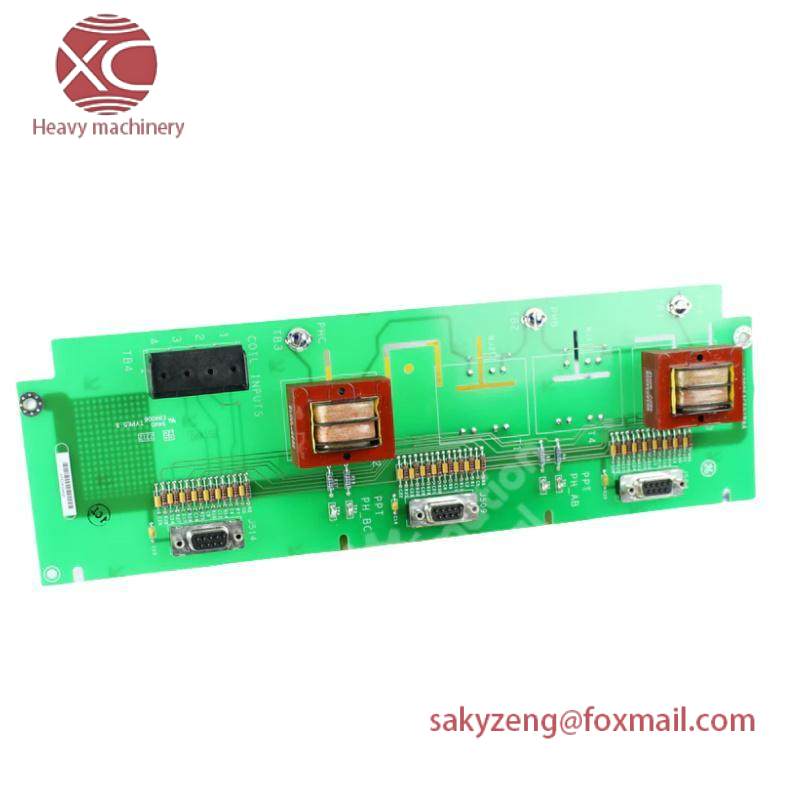

The IS200EACFG1BAA Circuit Board is a critical element in the Speedtronic Mark VI series, tailored for high-performance control systems. It’s specifically designed for applications requiring robust excitation control in industrial environments, ensuring optimal system operation and reliability.
Featuring a G2 version, this board boasts enhanced performance capabilities, including a wide operating range of 1000 V RMS ±20% at 50/60 Hz, providing versatile compatibility across various industrial settings.
Equipped with a customized rectangular layout, the IS200EACFG1BAA incorporates four vertically aligned spaces labeled T1-T4. These spaces house transformers, essential for voltage and current transformations, contributing to the overall efficiency and accuracy of the control system.
Crafted from high-grade, corrosion-resistant materials, this circuit board ensures durability and longevity, minimizing maintenance requirements and downtime. Its design is meticulously optimized for seamless integration into existing industrial control systems.
Easy to install and integrate, the IS200EACFG1BAA Circuit Board comes with detailed installation guidelines and technical support, ensuring a smooth setup process for users. It supports various communication protocols, enhancing its interoperability with other control modules and devices.
