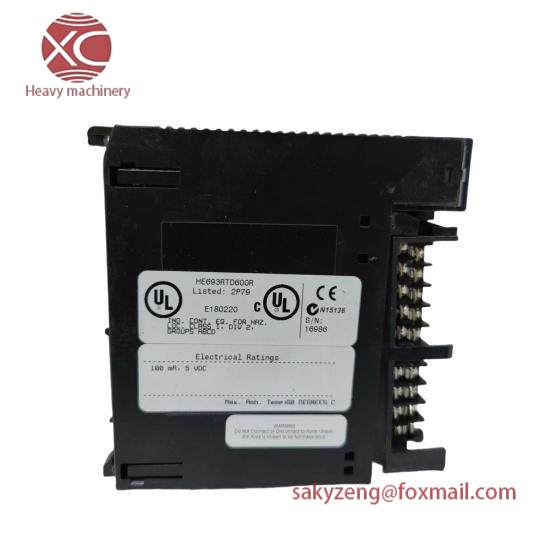

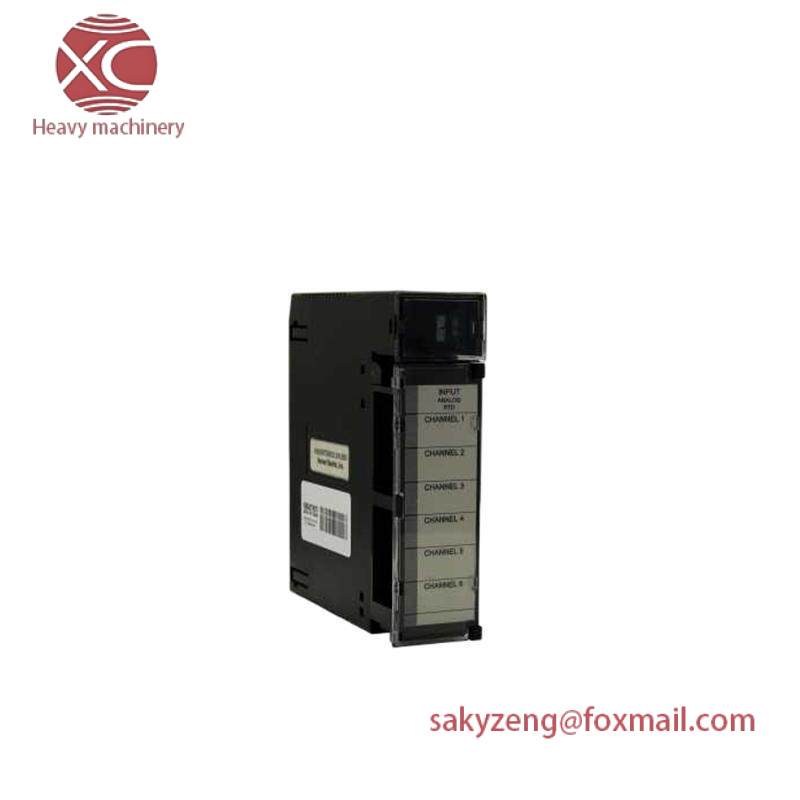

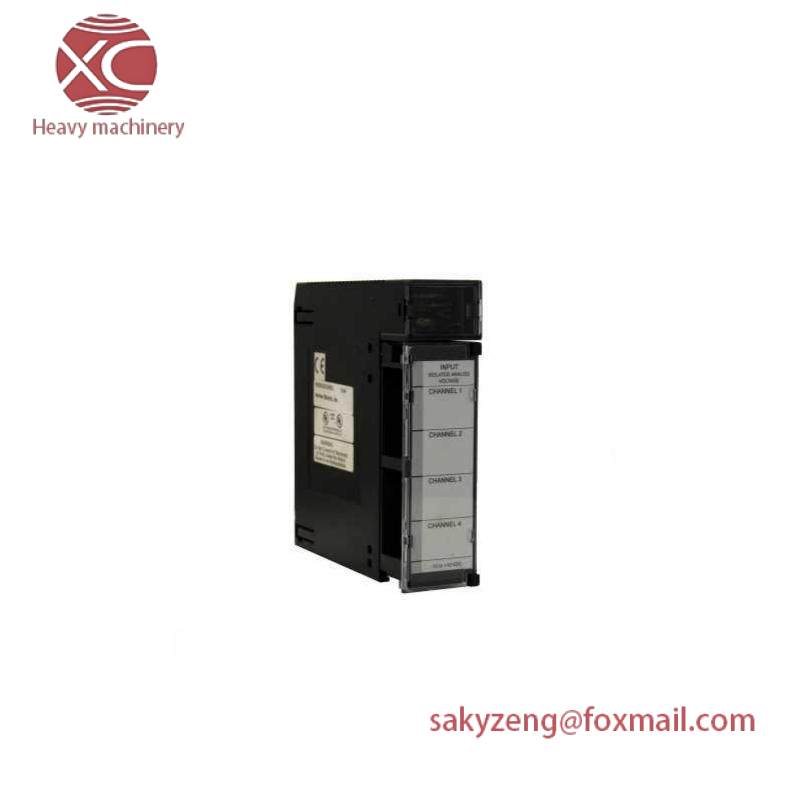

GE HE693RTD600 RTD Input Module, Low Resolution

Altitude Maximum:2000 Meters

Channel Type:Single-Ended

Common Mode Rejection:>100 dB

Excitation:150 µA

Isolation Level:500 Vrms at 50/60 Hz

Lead Resistance Maximum:50 Ω

Operating Temperature Range:-40 to 75°C

Part Number:HE693RTD600

Type:2 or 3 Wire

Weight:224 grams

    The GE HE693RTD600 RTD Input Module is a cutting-edge solution for industrial temperature measurement needs. Engineered for precision and reliability, it boasts a low-resolution RTD input design that ensures accurate readings even in harsh environments. With an altitude maximum of 2000 meters, this module is suitable for deployment in various altitudes without compromising its performance. The single-ended channel type enhances signal integrity, while common mode rejection greater than 100 dB at 50/60 Hz ensures minimal noise interference. Additionally, the excitation of 150 µA and isolation level of 500 Vrms at 50/60 Hz provide enhanced safety and stability. Operating within a wide temperature range from -40°C to 75°C, this module is designed to withstand extreme conditions. Whether for use in manufacturing plants, process control systems, or other industrial applications, the GE HE693RTD600 RTD Input Module is your reliable choice for precise temperature measurement.
