Model Type:Regulator Board
Series:Mark IV
Application:Steam/Gas Turbine Management
Edge Markings:A through J, 2, 10-80 on left, 218A4637, P6 & P4 Connectors
Connector Types:Two P6, Two P4
Resistor Values:Ceramic Metal Film Resistors of Differing Values
Capacitor Types:Fixed Vacuum, Ceramic, Polyester Film
Capacitor Ratings:200V, 100V, 80V
Support:Original technical support from GE

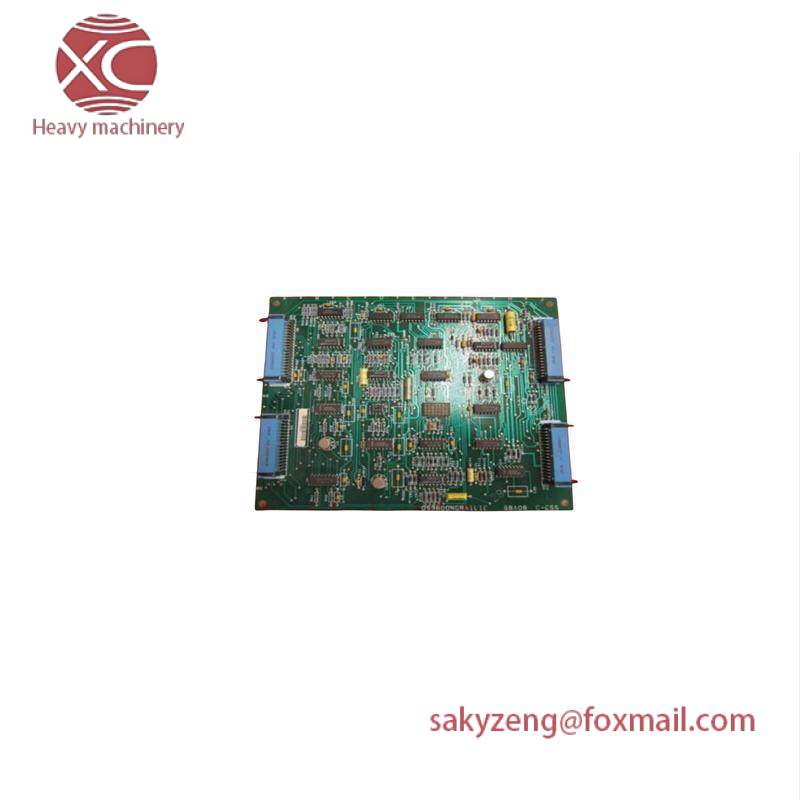

The DS3800NGRA1L1E boasts an advanced design with integrated chipsets that duplicate critical responsibilities across multiple boards, ensuring reliability and system uptime.
Marked on the top edge with letters A through J and on the left edge with numbers 2 and subsequent digits up to 80, this board is easily identifiable for quick maintenance and replacement.
Equipped with two P6 connectors and two P4 connectors, facilitating seamless integration and connectivity within the Mark IV system.
Utilizing a mix of resistor types and capacitor materials including ceramic, polyester film, and vacuum types, the DS3800NGRA1L1E ensures precise control and stability under various operational conditions.
Backed by GE‘s comprehensive technical support resources, including datasheets, manuals, and other product documentation, users have access to detailed guidance for optimal performance.
