Manufacturing Company:General Electric
Model Number:DS3800HPTK
Application Category:Mark IV DS3800
Functionality:Gate driver for the Mark IV Speedtronic series, providing precise control over turbine operations
Component Count:Fifteen long grey resistors rated at 18 Ohms ±5%, ten color-coded resistors indicating their capacity, thirteen diodes of various colors, three capacitors of varying sizes, a large glass fuse, and a small red LED
Physical Design:Comprises a thin metal divider with eight contact points, labeled from A through H and then J with triangular symbols between each letter, and equipped with two screw points and two plastic clips for easy installation
Manufacturing Information:Labeled with circuit board number, manufacturer’s logo (GE), and manufacturing location

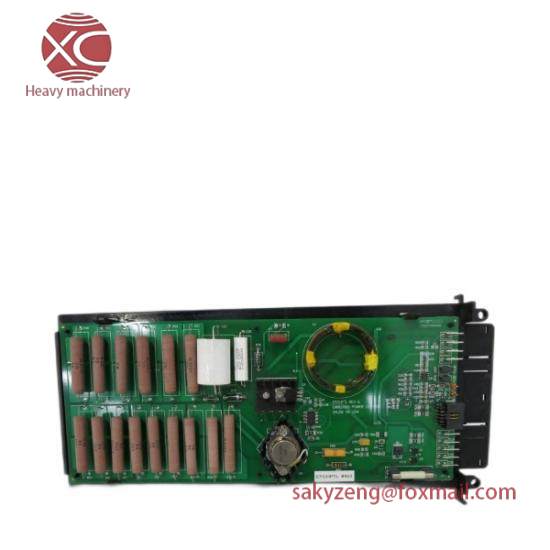

Introducing the GE DS3800HPTK GATE DRIVER CARD, engineered for unparalleled performance in the realm of industrial control systems. This card is meticulously designed to serve as a critical component in General Electric’s Mark IV Speedtronic series, enhancing turbine control mechanisms with precision and reliability.
Featuring a robust design with a total of fifteen long grey resistors rated for 18 Ohms, our GATE DRIVER CARD ensures optimal electrical signal transmission, crucial for the seamless operation of your system. Each resistor is rated for up to 10W, providing a strong foundation for efficient power handling.
With ten additional color-coded resistors, our GATE DRIVER CARD offers versatility in managing different current capacities, tailored to meet the specific needs of your industrial application. This adaptability makes it a preferred choice among professionals seeking enhanced control over their systems.
Equipped with thirteen diodes, each serving a unique purpose, our GATE DRIVER CARD delivers superior performance in managing electrical signals. These diodes, combined with the strategic placement of three capacitors across various sizes, contribute to its exceptional reliability and efficiency.
To ensure safety and protection, our GATE DRIVER CARD includes a large glass fuse, safeguarding against potential overcurrent situations. Additionally, a small red LED serves as a visual indicator for operational status, enhancing user convenience and system monitoring capabilities.
Installation couldn’t be simpler. With just two screw points and two plastic clips, our GATE DRIVER CARD can be easily integrated into your existing system, reducing setup time and minimizing installation complexities. The product is clearly labeled with the circuit board number, manufacturer’s logo, and country of origin, providing clear identification and traceability.
