Model Number:DS3800HCVA1G
Manufacturing Brand:General Electric (GE)
Series:Mark IV DS3800
Board Type:Digital to Analog Output
Number of Jumper Settings:14
Indicator LEDs:2 Amber
Connectors (Front Accessible):3
Trimmer Resistors:4
DC to DC Voltage Regulators:2
Physical Dimensions:L x W x H (in mm): 152 x 100 x 20
Weight:0.34 kg
Compatibility:GE Turbine Control Systems

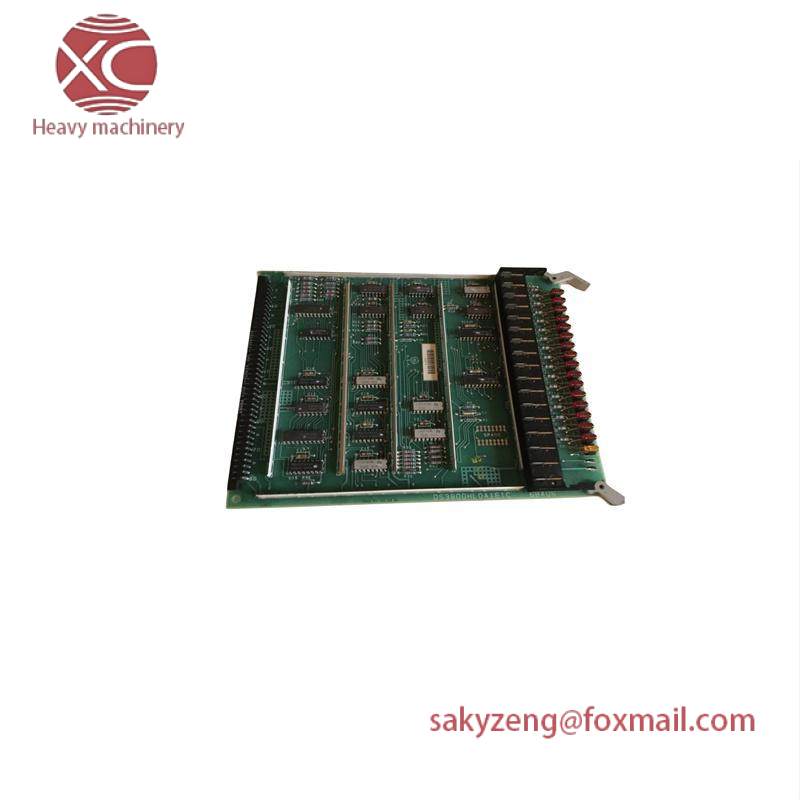

The GE DS3800HCVA1G circuit board is meticulously designed to meet the stringent requirements of industrial automation environments, ensuring optimal performance and longevity in challenging conditions.
Featuring a modular connector system for seamless integration with drive components, this board is engineered with retention levers to securely hold it in place, ensuring reliable operation without risk of dislodgement.
Equipped with 14 jumpers and two Amber indicator LEDs, the DS3800HCVA1G provides users with visual feedback and enhanced functionality, making troubleshooting and maintenance more efficient.
Accessible from the front of the board are three connectors, enabling easy connection to external devices and facilitating quick setup and deployment in various industrial applications.
The inclusion of four trimmer resistors allows for fine-tuning of output signals, ensuring precise control over connected machinery. Additionally, the presence of two DC to DC voltage regulators ensures stable power supply and maintains operational efficiency.
