Manufacturer:General Electric
Series:Mark V
Part Number:DS200KLDCG1AAA
Functional Description:LED/Key/Display Board
Coating:Normal Coating
Revisions:3
Backwards Compatibility:First two revisions
Assembly Type:Normal Assembly
Number of LEDs:32
Number of Displays:21 (4-character)
Jumper Switches:1
Connection Strip:40-pin on rear
Excess Voltage Limiting Components:Available
Display Type:Numerical (16-segment digits)
Board Markings:C-ESS, 6BA01
Drilled Corners and Edges:Yes

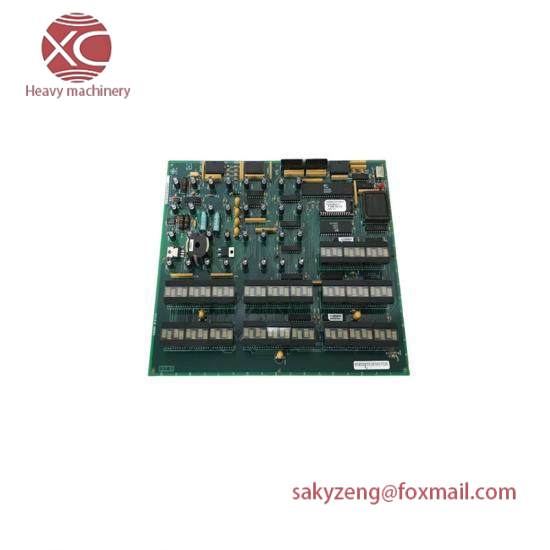

Engineered for precision and reliability, the DS200KLDCG1AAA LED Display Board is an essential component of General Electric’s Mark V Turbine Control System, offering clear and comprehensive data representation.
Featuring 32 LEDs and 21 four-character displays, this board ensures that all operational parameters are presented with clarity and detail, facilitating quick decision-making and maintenance.
The inclusion of a single jumper switch allows for flexible customization of board behavior, catering to diverse operational needs without compromising system integrity.
Crafted with a normal coating for durability and resistance to industrial environments, this board ensures long-lasting performance in challenging conditions.
Backwards compatibility with the first two revisions of the Mark V Series ensures that the DS200KLDCG1AAA seamlessly integrates with older systems, providing a smooth transition to advanced functionality without the need for extensive system modifications.
