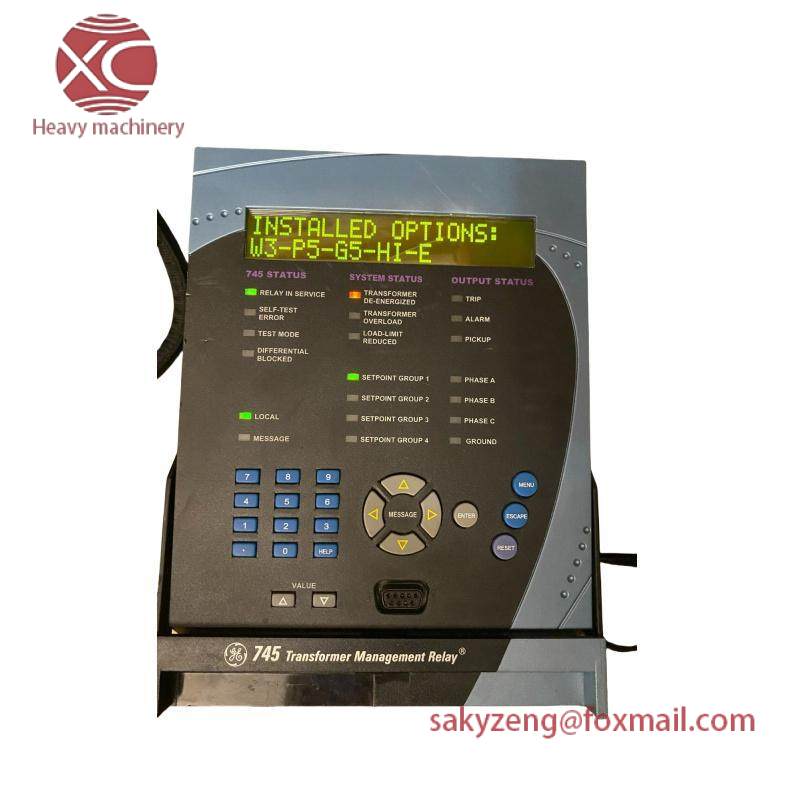

GE 745-W3-P5-G5-HI-R-E Relays – Precision Control for Transformers

Weight:4.8 kg

Input Voltage Range:Burden less than 0.025 VA at 120 V

Source VT Capacity:2 to 600 kV / 60 to 120 V

Number of Logic Inputs:16

Manufacturer:General Electric

Fuse Current Rating:3.15 A

Display Type:Enhanced 40 character

Panel Compatibility:Standard 19″

LED Status Indicators:Multiple LEDs for real-time alerts

    The GE 745-W3-P5-G5-HI-R-E relay system is designed to manage and protect transformers, autotransformers, and reactors with its dynamic CT ratio mismatch correction, overexcitation protection, and transformer overload protection features.

    Equipped with a high-resolution, 40-character display, this relay system ensures clear visibility and easy manual entry of setpoints, offering a user-friendly interface for operators.

    With a compact footprint measuring 9 inches in height, 7 inches in width, and 7 ⅛ inches in depth, it fits perfectly into standard 19-inch panels, enhancing operational efficiency.

    The system incorporates LEDs on the front panel for real-time status alerts and error notifications, keeping operators informed of system conditions without delay.

    This advanced relay system from GE Multilin operates with certified reliability, providing unmatched performance and peace of mind for industries relying on precise transformer management.
