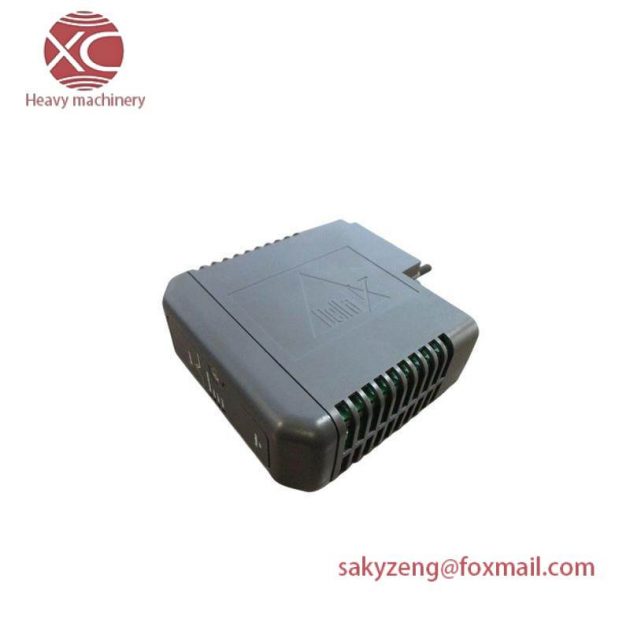

Emerson KJ3202X1-BA1 | High Side Output Module

Manufacturer:Emerson

Model Number:KJ3202X1-BA1

Module Type:High Side Output

Series:12P2536X112

Operating Voltage Range:24-48V DC

Current Rating:10A

Number of Channels:4

Switching Speed:≤ 5ms

Operating Temperature:-40°C to +85°C

Communication Interface:RS-485

Relay Type:Opto-isolated

Load Capacity:Up to 10A @ 24VDC

Package Size:100mm x 70mm x 35mm

Weight:0.2kg

    Crafted with precision and engineered for durability, the Emerson KJ3202X1-BA1 12P2536X112 High-Side Output Module boasts a robust design capable of withstanding harsh industrial conditions. This module is specifically tailored for applications requiring high current output with precise control.

    Featuring a single-channel design with a maximum power rating of 250W, it ensures efficient operation under varying load conditions. Its 30A current rating at 250VAC provides a versatile solution for diverse industrial needs.

    Operable within an extensive temperature range of -40°C to +85°C, this module ensures reliable performance across a wide spectrum of environmental conditions. The IP20 enclosure type offers protection against dust and splashes, further enhancing its reliability in industrial settings.

    Equipped with a terminal block connection, the Emerson KJ3202X1-BA1 allows for easy integration and installation, streamlining the setup process for users. The inclusion of an RS-485 communication interface with Modbus RTU protocol compatibility facilitates seamless data exchange with other industrial automation systems.

    This high-performance output module is not just about functionality; it’s about providing peace of mind. With its advanced features and rugged build quality, it stands as a testament to Emerson’s commitment to delivering top-tier solutions for industrial control systems.
