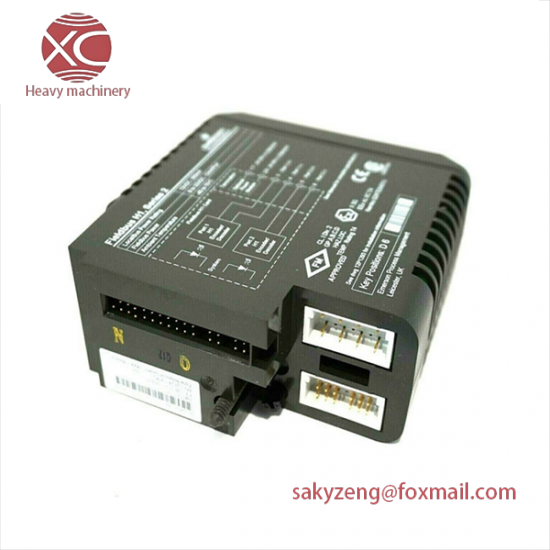

EMERSON KJ3202X1-BA1 12P2536X062 High Side Output Module – Advanced Control Solutions

Operating Voltage:24 VDC

Output Current:10 A

Maximum Switching Frequency:20 kHz

Temperature Range:-40°C to +85°C

Package Type:SMD

Relay Rating:3A @ 24VDC

Operating Ambient Humidity:5% to 95%

Electrical Isolation:500V AC (RMS) between input and output

Mechanical Isolation:1000V DC

Insulation Resistance:≥ 10 MΩ

    The EMERSON KJ3202X1-BA1 12P2536X062 High Side Output Module is engineered for high-side current control applications requiring precise voltage and current adjustments.

    Featuring a robust design that withstands extreme environmental conditions, this module ensures reliable operation in a wide range of industrial settings.

    With its digital input/output capabilities and RS485 Modbus communication interface, it seamlessly integrates with modern automation systems, enhancing system efficiency and control accuracy.

    Designed for safety and reliability, this module complies with stringent international standards, including UL/cUL/cCSA and carries a CE Mark for European conformity.

    The 12P2536X062 High Side Output Module utilizes advanced semiconductor technology, providing high efficiency and low power consumption, making it an ideal choice for energy-conscious manufacturing processes.
