Product Type:Bus Coupler
Model:BK5220
Extended Product Type:Other
Operating Modes:Bit Strobe, Polling, Cyclic, Change of State (COS)
Number of I/O Stations:64
Bus Terminal Count:64
Max. Number of Bytes Fieldbus:512 input, 512 output
Digital Peripheral Signals:1,020 inputs/outputs
Power Supply:24V DC (-15 %/+20 %), through bus cable, 11…25V (DeviceNet spec.)
Input Current:70mA + (total K-bus current)/4, 500mA max.
Current Supply K-bus:1750mA
Weight:Approx. 130g

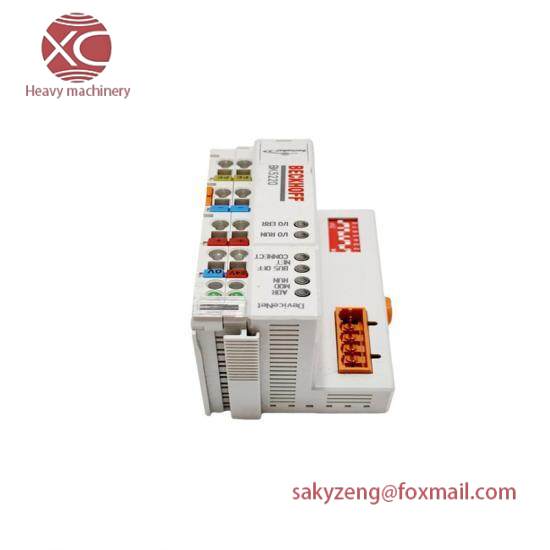

The BK5220 Bus Coupler from Beckhoff is engineered to provide robust DeviceNet communication in industrial automation environments, ensuring reliable data exchange between devices.
With support for various operating modes, including Bit Strobe, Polling, Cyclic, and Change of State (COS), this coupler enhances system flexibility and responsiveness.
Featuring 64 I/O stations, it supports extensive connectivity, accommodating multiple devices with ease. The inclusion of 64 bus terminals ensures efficient data flow within the network.
The BK5220 is equipped to handle up to 512 bytes of input and output data, providing ample space for information exchange. It supports a total of 1,020 digital peripheral signals, enhancing system capability.
The coupler is powered by a versatile 24 V DC supply or a 11…25 V range compatible with DeviceNet specifications, ensuring compatibility across different systems. Its input current management feature maintains optimal performance under varying conditions.
Compact yet robust, the BK5220 weighs approximately 130 g, making it easy to integrate into various industrial settings without compromising on functionality.
