Product Type:Axis Controller Module
Counter Resolution:24 bit
Inputs:HEDL (HP / AVAGO interface) / RS422 Encoder
Encoder Power Supply:+5 V or +15 V selectable with jumper
Output Voltage:Low: 0 to 2 V, high: 3 to 34 V, Imax = 10 mA
Voltage Range:18 to 34 VDC
Stepper Motor Compatibility:Supports 2x Out at 150kHz, 2x In INC
Encoder Supply Voltage:5/15V

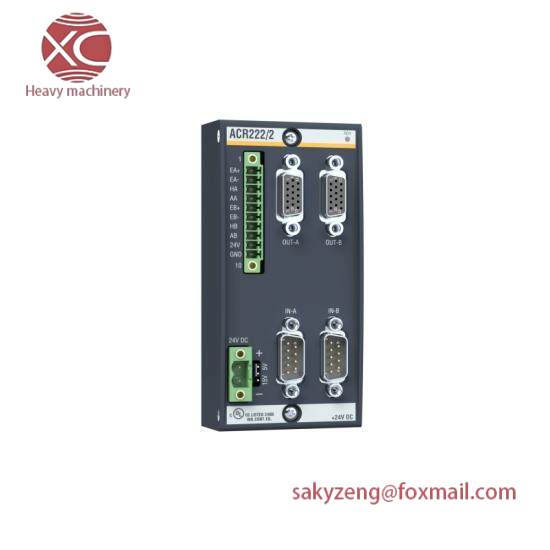

Engineered for precision and efficiency, the BACHMANN ACR222/2 is a cutting-edge axis controller module tailored for the most demanding industrial settings. It combines robust functionality with exceptional accuracy, ensuring smooth operation and precise control over mechanical systems.
With its 24-bit counter resolution and versatile input capabilities, the module offers unparalleled precision in measuring and controlling rotational movements. Its customizable encoder power supply allows for seamless integration with various systems, while the output voltage configuration ensures compatibility and optimal performance across different applications.
Featuring dual stepper motor control channels, the BACHMANN ACR222/2 supports high-speed operation and can handle complex motion profiles with ease. The inclusion of incremental and absolute encoder inputs enhances its adaptability, making it suitable for a wide range of industries from manufacturing to robotics.
Designed with user convenience in mind, the module offers linear, sine², and parabolic acceleration modes, providing users with flexibility to optimize their operations based on specific requirements. Moreover, the absence of a power amplifier reduces complexity and maintenance needs, contributing to lower operational costs and enhanced system reliability.
Built with durability and longevity in mind, the BACHMANN ACR222/2 is constructed using high-quality materials that withstand harsh industrial environments. It is easy to integrate into existing systems and supports various connection protocols, including RS422, ensuring seamless communication and control.
