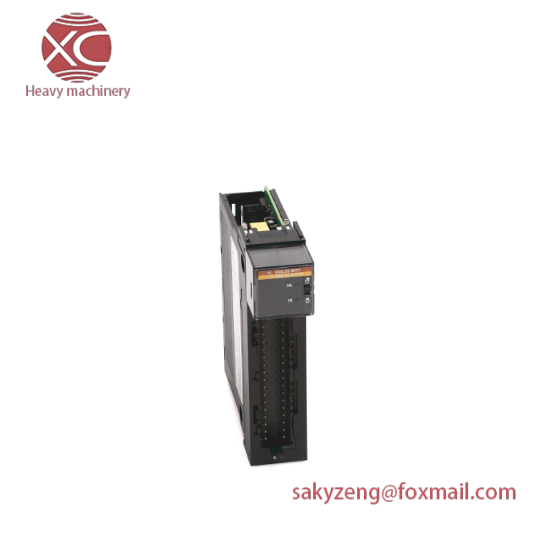

Allen-Bradley 1756-IF4FXOF2F ControlLogix Fast Analog Module

Model Type:ControlLogix

Model Number:1756-IF4FXOF2F

Manufacturer:Allen-Bradley

Inputs:4 Current-Voltage Inputs

Outputs:2 Current-Voltage Outputs

Pin Configuration:36 Pin

Series:A

Operating Temperature:-40°C to +85°C

Isolation Rating:30 V (Continuous)

Enclosure Type:Open Type

RFI Suppression:Radiated: 10 V/M with 1 KHZ Sine-Wave 80% AM from 80 – 2000 MHz, 10 V/M with 200 Hz 50% Pulse 100% AM at 900

Power Consumption:Max 1 W

    The Allen-Bradley 1756-IF4FXOF2F ControlLogix Fast Analog Module is an essential component for enhancing the operational efficiency of modern industrial plants. Designed for seamless integration into ControlLogix systems, it delivers unparalleled speed and accuracy in data acquisition and control applications.

    This module boasts a robust 4-channel input capability, allowing for versatile monitoring of critical signals in real-time. Its 2-channel output ensures precise control over actuators and other devices, contributing significantly to process optimization and quality assurance.

    Featuring a 36-pin configuration, the 1756-IF4FXOF2F offers flexibility in wiring and compatibility with various industry standards. Its series A design ensures durability and longevity in harsh industrial environments.

    With its high-precision analog resolution and support for advanced communication protocols like ControlNet, this module facilitates seamless data exchange within complex automation networks. The integrated isolation mechanisms protect against electrical interference, ensuring reliable operation under varying environmental conditions.

    Engineered for energy efficiency, the Allen-Bradley 1756-IF4FXOF2F ControlLogix Fast Analog Module optimizes power consumption without compromising on performance. Its temperature-resistant enclosure (-40°C to +85°C) allows deployment in extreme climates, making it suitable for a wide range of industrial applications worldwide.
