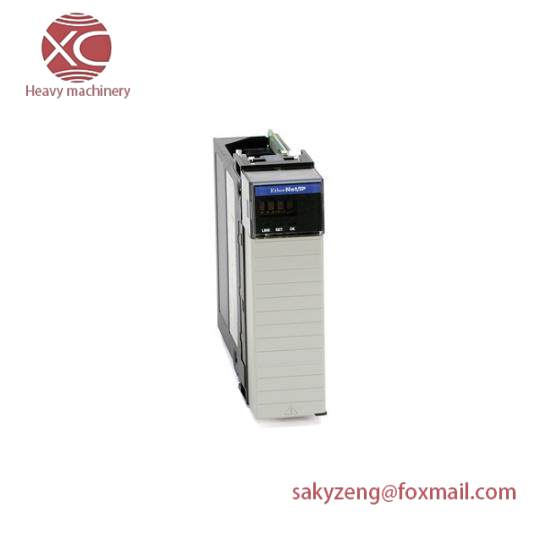

Allen Bradley 1756-ENBT ControlLogix Ethernet/IP Communication Module

Model Type:Communication Module

Manufacturer:Allen Bradley

Model Number:1756-ENBT

Communication Protocol:Ethernet/IP

Mounting:Chassis

Connection Cables:802.3 compliant shielded or unshielded twisted pair

Temperature Rating:0 – 60 DEG C

Power Dissipation:5.1 W

Isolation:30 V continuous

Environmental Conditions:5 – 95% non-condensing relative humidity

Vibration:2 G

Shock:30 G

Enclosure:Open Type

RFI Suppression:Radiated: 10 V/M with 1 KHz sine-wave 80% AM from 80 – 2000 MHz, 10 V/M with 200 Hz 50% pulse 100% AM at 900

    The Allen Bradley 1756-ENBT module is engineered to enhance the performance and efficiency of industrial automation systems by enabling fast and reliable communication through the EtherNet/IP protocol. This module is compatible with ControlLogix platforms, offering seamless integration with a wide range of industrial devices.

    Featuring an open-type enclosure, the 1756-ENBT ensures robust environmental protection while maintaining easy access to its components for maintenance and upgrades. Its design allows for flexible installation within various control cabinets or racks.

    Equipped with advanced isolation capabilities, this module ensures data integrity and prevents interference from external sources, guaranteeing smooth operation in harsh industrial environments. Its temperature rating makes it suitable for a broad range of applications, from cold storage facilities to high-temperature manufacturing processes.

    The module’s compatibility with both ControlNet A/B and ControlNet A to ControlNet B provides versatile connectivity options, supporting diverse network architectures and facilitating complex system configurations. This flexibility enables users to optimize their automation setups according to specific requirements.

    Comprehensive documentation and technical support accompany the Allen Bradley 1756-ENBT module, ensuring a smooth deployment process and minimizing downtime during system integration. With its robust features and compatibility, this module is a strategic investment for companies looking to upgrade or expand their industrial automation infrastructure.
