Number of Channels:2 Input, 2 Output
Common Mode Voltage Range (Input):-20 To 20 V
Absolute Input Voltage (Input):+/- 7.5 VDC or 7.5 VAC RMS (Max)
Input Range (Current):-20 To 20 MA
Absolute Input Current (Max):-30 To 30 MA
Output Range (Voltage):-10 To 10 V – 1 LSB
Voltage Rating:Overvoltage Protection: 7.5 VAC RMS
Input Range (Voltage):-10 To 10 VDC – 1 LSB
Current Rating (Backplane):55 MA
Analog Resolution:High Resolution

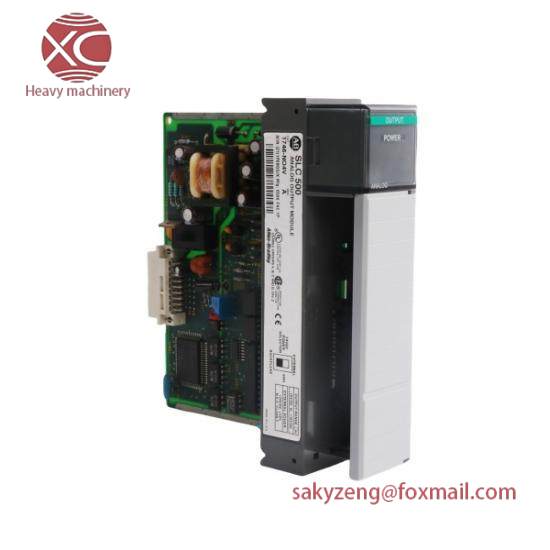

The 1746-NO4V Output Module is meticulously engineered to meet the demands of complex industrial applications. It features a robust design capable of handling demanding conditions while ensuring reliability and longevity.
Each output channel is equipped with a current rating of up to 20mA, allowing for precise control over actuators, solenoids, or other devices requiring low-current signals. This makes it an ideal choice for applications requiring precise control over mechanical actions.
The module supports a versatile power supply range, making it compatible with various industrial setups. Its compatibility with 24V DC power sources ensures seamless integration into existing systems without the need for additional converters.
With an IP20 enclosure type, this module is protected against dust and splashes of water, enhancing its durability in industrial environments. The compact size and lightweight design facilitate easy installation and integration into diverse control panel configurations.
For enhanced operational flexibility, the 1746-NO4V includes a built-in RS-232C serial port for communication purposes, enabling remote monitoring and control via a standard computer interface. This feature facilitates easier system diagnostics and maintenance, reducing downtime and increasing productivity.
