Number of Channels:4 (Input)
Common Mode Voltage Range:-20 To 20 V
Absolute Input Voltage:+/- 7.5 VDC or 7.5 VAC RMS (Max.)
Input Range:-20 To 20 MA
Voltage Rating:Overvoltage Protection: 7.5 VAC RMS
Input Range (-10 To 10 VDC):-1 LSB
Current Rating:Backplane Current Draw: 35 MA at 5 V, 85 MA at 24 V
Isolation:Backplane: 500 VDC, Enclosure: Open Type

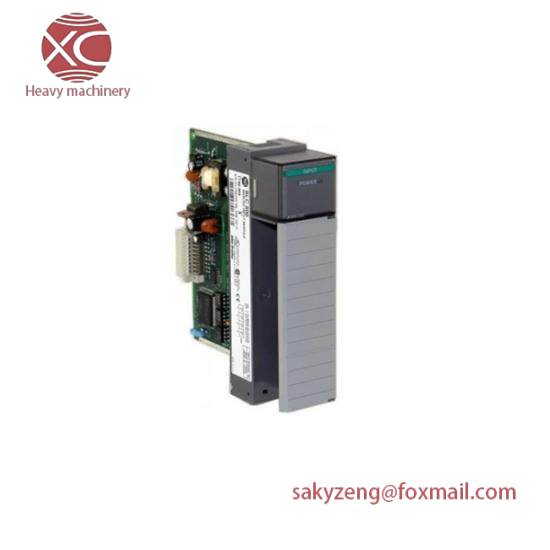

The Allen Bradley 1746-NI4B Analog Input Module is engineered to deliver exceptional accuracy and reliability, essential for precise control in demanding industrial environments. Its robust design ensures seamless integration into complex automation systems, supporting a wide range of applications from process control to manufacturing automation.
Featuring advanced isolation technology, this module safeguards against electrical interference, ensuring stable operation even under harsh conditions. With its versatile input voltage range, it can accommodate various sensor outputs, making it compatible with numerous industrial sensors.
Each channel of the 1746-NI4B is equipped with high-speed sampling capabilities, enabling real-time data acquisition and analysis. This feature is crucial for applications requiring quick response times and accurate data processing, enhancing operational efficiency and productivity.
In terms of durability and longevity, the open-type enclosure facilitates easy maintenance and access to connections, reducing downtime. The module’s compact size and standardized interface make it an ideal choice for space-constrained systems, ensuring minimal impact on system layout and design.
Furthermore, the Allen Bradley 1746-NI4B supports advanced communication protocols, including Ethernet/IP, DeviceNet, and ControlNet, enabling seamless connectivity with other industrial devices. This interoperability is vital for building comprehensive automation solutions, streamlining operations across multiple subsystems.
