Advanced 2098-DSD-HV150X-DN High-Voltage Servo Drive: Precision Control for Industrial Automation

In stock

The 2098-DSD-HV150X-DN Servo Drive is designed for high-precision control in industrial conveyor systems, ensuring smooth and efficient material transport across various manufacturing processes.

Input Voltage (AC):230-480V rms, 3-Phase

Frequency (AC):47-63 Hz

Continuous Output Current:7 A

Intermittent Output Current:14 A

Output Power:1.5 kW @ 230VAC, 3.0 kW @ 460VAC

Control Specifications:Commutation with 3-Phase Sinusoidal, SVM, Digital PI Current Regulator, Digital PID Velocity & Position Regulators

Bus Overvoltage:452V DC

Shunt On:420V DC

Weight:22.96 lbs

    The Allen-Bradley 2098-DSD-HV150X-DN Servo Drive is specifically designed for demanding industrial applications, offering unparalleled precision and reliability. With its robust construction and versatile functionality, this drive is suitable for a wide range of automation tasks, from simple indexing operations to complex multi-axis control scenarios.

    Equipped with advanced commutation techniques such as 3-Phase Sinusoidal and Space Vector Modulation (SVM), the 2098-DSD-HV150X-DN ensures smooth and efficient operation, minimizing torque ripple and enhancing system stability. Its digital PI current regulator and digital PID velocity and position regulators provide precise control over motor dynamics, enabling seamless integration into existing control systems.

    Featuring an auxiliary power supply and internal shunt resistance of 40 ohms, this servo drive offers enhanced safety and compatibility with various electrical systems. Its compact size and lightweight design (22.96 pounds) make it easy to integrate into diverse industrial environments, while its modular architecture facilitates quick installation and setup.

    Designed for maximum efficiency and reliability, the 2098-DSD-HV150X-DN Servo Drive is compatible with Allen-Bradley’s ControlLogix Programmable Automation Controller (PAC) platform and SOFTLogix controllers, leveraging the industry-standard SERCOS communication protocol for seamless integration and control.

    Backed by Allen-Bradley’s commitment to quality and customer support, this servo drive comes with comprehensive documentation and technical resources, ensuring ease of use and maintenance for end-users. Whether you’re looking to enhance the performance of your existing machinery or embark on new automation projects, the Allen-Bradley 2098-DSD-HV150X-DN Servo Drive is the trusted solution for achieving superior results in industrial automation.

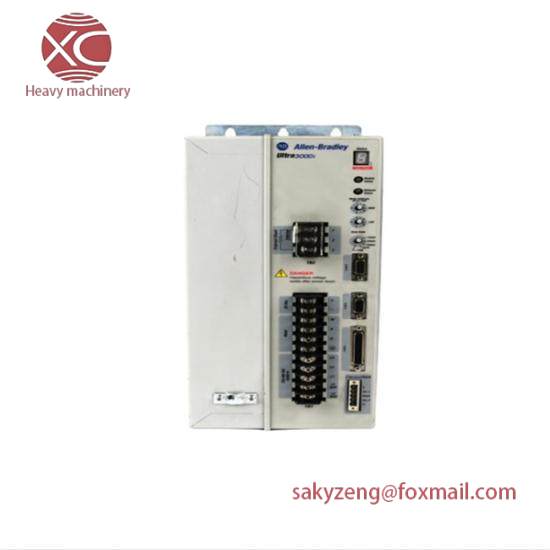

2098-DSD-HV150X-DN Servo Drive
