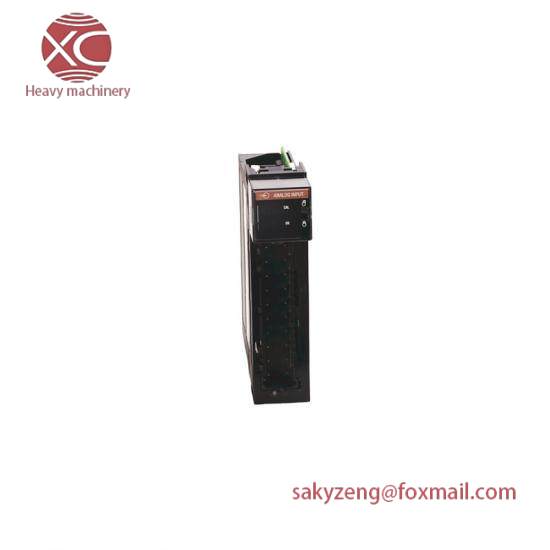

Advanced 1756-IF6I ControlLogix 6-Point Isolated Analog Input Module for Precision Manufacturing

Manufacturer:Allen-Bradley

Model:1756-IF6I

Type:AI Module

Isolation:Yes

Channels:6

Analog Input Range:4-20mA, 0-5V, 0-10V

Sampling Rate:5 samples per cycle

Data Format:Signed 16-bit

Communication Compatibility:ControlNet, DeviceNet, EtherNet/IP

Enclosure Type:IP20

Power Consumption:1.5W

Environmental Conditions:Operating temperature: 0°C to 55°C, Storage temperature: -40°C to 85°C

Vibration Resistance:Up to 5g

Shock Resistance:Up to 50g

Connection:Terminal block

Connector Type:DB9

    Engineered for robust performance in harsh industrial conditions, the 1756-IF6I ControlLogix 6-Point Isolated Analog Input Module ensures reliable operation withstanding extreme temperatures and demanding environmental factors.

    Each of the six isolated inputs provides protection against electrical noise and ground loops, ensuring accurate and consistent data acquisition without interference.

    With a sampling rate of up to 1000 samples per second, this module is capable of capturing rapid changes in process variables, making it ideal for real-time monitoring and control in high-speed manufacturing processes.

    Supporting a variety of communication protocols including ControlNet, DeviceNet, and EtherNet/IP, the 1756-IF6I facilitates seamless integration with existing network infrastructure, enhancing operational efficiency.

    The compact design and lightweight construction make it easy to install and integrate into existing control systems, minimizing downtime and reducing installation costs.
