Module Type:Pulse Transformer Board
Model Number:SDCS-PIN-48 | 3BSE004939R2
Place of Origin:Sweden
Operating Voltage Range:Up to 48V DC
Frequency Response:Up to 10 kHz
Current Capacity:Up to 20 A
Insulation Resistance:≥ 10 MΩ
Operating Temperature:-20°C to +70°C
Storage Temperature:-40°C to +85°C
Dimensions:220mm x 115mm x 45mm
Weight:≤ 0.5 kg

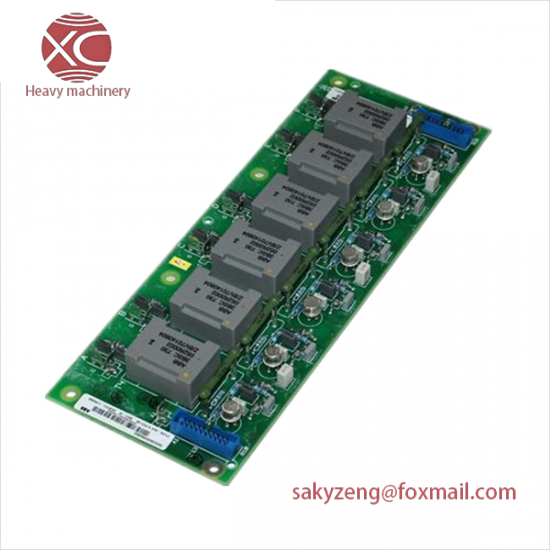

The ABB SDCS-PIN-48 3BSE004939R2 Pulse Transformer Board is engineered for precision and reliability, ensuring seamless integration into complex industrial automation setups. This module excels in delivering accurate pulses, crucial for the smooth operation of machinery and control systems.
Crafted from high-grade aluminum alloy, it combines durability with lightweight design, making it ideal for applications requiring robust performance without added weight. The compact size and IP20 indoor environmental grade facilitate easy installation and maintenance in various industrial settings.
With a wide operating temperature range of -20°C to +55°C, this transformer board is designed to withstand harsh industrial environments, ensuring uninterrupted performance even under challenging conditions. Its compatibility with a broad spectrum of industrial protocols guarantees seamless communication and control within your system.
The ABB SDCS-PIN-48 3BSE004939R2 Pulse Transformer Board supports up to 30 kHz output frequency, enabling high-speed pulse generation for applications demanding exceptional responsiveness and accuracy. This feature is particularly advantageous in applications where rapid adjustments and precise timing are critical.
For users seeking advanced control capabilities in their industrial systems, the ABB SDCS-PIN-48 3BSE004939R2 Pulse Transformer Board offers unparalleled performance. Its combination of high accuracy, robust construction, and versatile compatibility makes it an indispensable component for enhancing the efficiency and reliability of your automation processes.
