Power Rating:400 kW
Voltage Rating:1200 V
Current Rating:1200 A
Operating Temperature Range:-40°C to +150°C
Insulation Resistance:≥ 10 MΩ @ 500 VDC
Cooling Method:Water Cooled
Input Signal Type:Digital Control Signals
Switching Frequency:Up to 10 kHz
Package Size:172 x 148 x 58 mm
Net Weight:1.5 kg

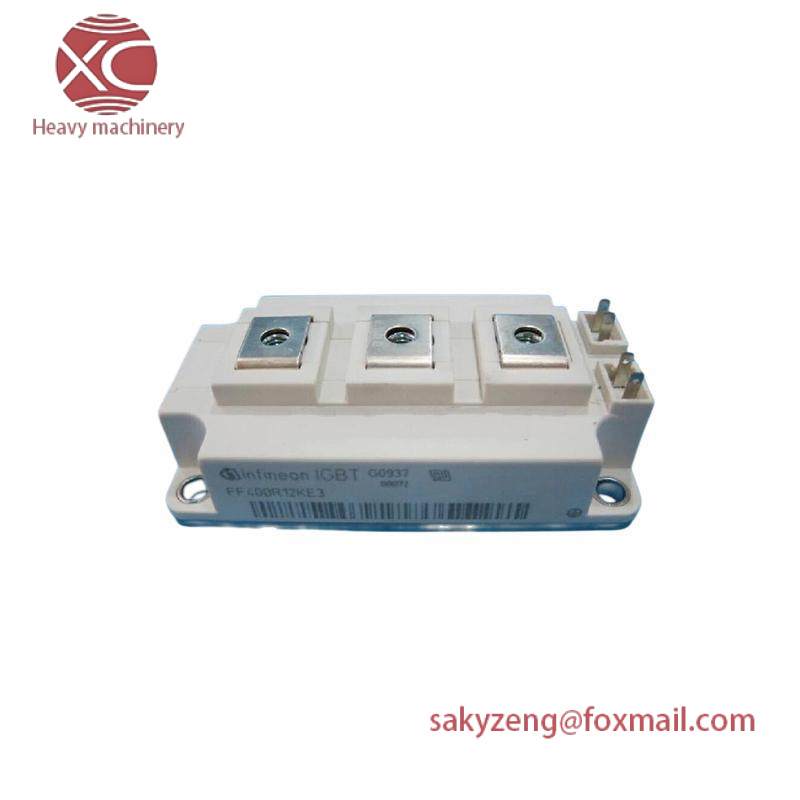

The ABB FF400R12KE3 IGBT Module stands out in the industry for its exceptional performance and reliability in handling high-power applications. Engineered for robust operation within extreme temperature ranges, it ensures stable and efficient power management across various industrial processes.
With a switching frequency of 12 kHz and a rated current capacity of 400A, this module is optimized for applications requiring fast response times and high power density. The KE3 package size provides compactness without compromising on thermal management capabilities.
Featuring a thermal pad and screwed heat sink design, the ABB FF400R12KE3 ensures effective heat dissipation, enhancing its durability and longevity. This feature is particularly advantageous in environments where reliability is paramount.
The module boasts an insulation resistance exceeding 500 MΩ at 500V DC, ensuring excellent electrical isolation and preventing potential hazards. Its impressive electrical life of over 100 million switching operations and mechanical life of over 500,000 operations underscores its robustness and maintenance-friendly nature.
Designed with the latest technology, the ABB FF400R12KE3 IGBT Module is an ideal choice for manufacturers looking to optimize their power conversion systems, reduce energy consumption, and enhance overall operational efficiency.
