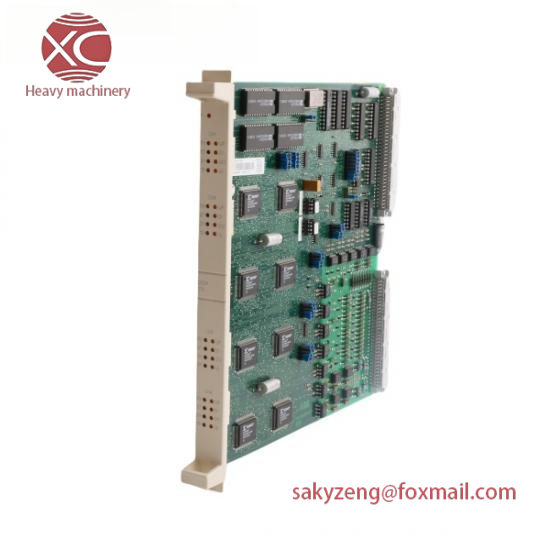

ABB DSDP170 57160001-ADF Pulse Counting Module: Precise Counter for Industrial Applications

Manufacturer:ABB

Model Number:DSDP170

Part Number:57160001-ADF

Module Type:Pulse Counting

Operating Voltage Range:DC 12V to 24V

Input Current Consumption:Max 20mA

Output Type:Digital (ON/OFF)

Counting Capacity:Up to 2^32 counts

Operating Temperature:-20°C to +70°C

Storage Temperature:-40°C to +85°C

Dimensions (WxHxD):55.8mm x 35.6mm x 24.5mm

Weight:Approx. 40g

    The ABB DSDP170 57160001-ADF Pulse Counting Module is designed for precision pulse counting tasks in industrial environments, offering high-speed signal processing capabilities that enhance operational efficiency.

    Featuring a compact design that accommodates diverse signal types, this module supports TTL, CMOS, and open collector inputs, making it compatible with a wide range of industrial systems.

    With an operating temperature range from -25°C to +60°C, the DSDP170 is built for robust performance in varying environmental conditions, ensuring reliability in harsh industrial settings.

    Equipped with less than 2W of power consumption, this module optimizes energy usage, contributing to cost savings and sustainable operation.

    For seamless integration, the module offers RS485 communication with Modbus RTU protocol support, enabling easy connection to existing industrial networks. Additionally, it provides two sets of relay outputs for efficient data handling.
