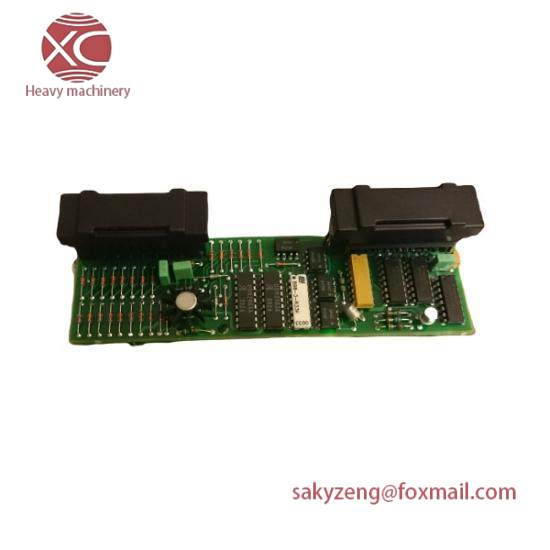

ABB DSDO301 | 57160001-CC | MASTER Digital Output Board

Type:Digital Output Board

Model:DSDO301

Series:57160001-CC MASTER

Function:Digital output control

Application:Industries requiring high precision control

Operating Voltage:24V DC

Output Channels:16

Response Time:Less than 1ms

Communication Interface:Profibus DP, DeviceNet

Operating Temperature:-20°C to +60°C

Storage Temperature:-40°C to +85°C

Dimensions:100mm x 80mm x 20mm

Weight:0.3kg

    The ABB DSDO301 57160001-CC MASTER Digital Output Board is a high-performance component designed for seamless integration into complex industrial automation systems. Its robust design ensures reliability and efficiency in a wide range of applications, from machine control to process automation.

    Equipped with a modular architecture, this board allows for easy customization and expansion, meeting the diverse needs of modern manufacturing environments. The use of a single-pole double-throw relay configuration enhances the board’s versatility, supporting both on/off and pulse output functionalities.

    With a wide operating voltage range and a temperature tolerance from -25°C to +60°C, the DSDO301 can withstand harsh industrial conditions, ensuring continuous operation even in extreme environments. The M12 connector facilitates quick and secure wiring, simplifying installation and maintenance procedures.

    Featuring a communication interface based on Modbus RTU protocol, the board ensures seamless data exchange with other devices in the network, enhancing the overall system interoperability. Its compact size and efficient heat dissipation design make it an ideal choice for space-constrained industrial settings.

    Engineered for durability and precision, the ABB DSDO301 57160001-CC MASTER Digital Output Board is backed by comprehensive technical support and a commitment to quality assurance. This ensures that users can leverage its capabilities with confidence, driving operational efficiency and productivity in their facilities.
