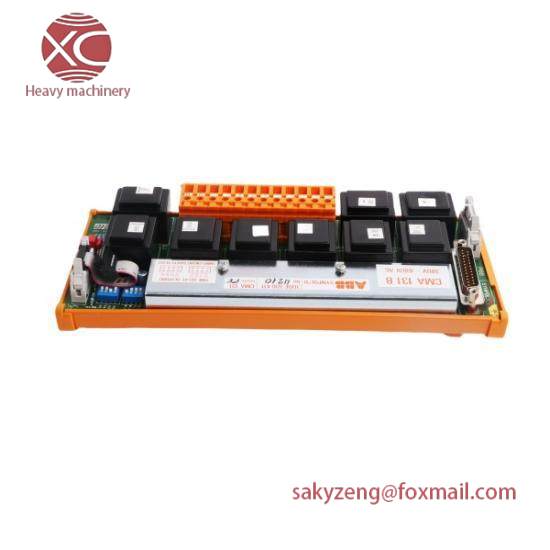

ABB CMA131 – 3DDE300411: High-Precision Encoder Module for Servo Motor Control

Product Type:Encoder Module

Model:CMA131 – 3DDE300411

Manufacturer:ABB

Power Consumption:15W

Operating Voltage:24VDC

Rotation Speed Range:0.01 – 3000 RPM

Accuracy:±0.01°

Communication Interface:EtherCAT

Environmental Conditions:-20°C to +60°C operating temperature, -40°C to +85°C storage temperature

Dimensions:115mm x 55mm x 12mm

Weight:100g

    Introducing the ABB CMA131 – 3DDE300411 Encoder Module, engineered for unparalleled precision and reliability in servo motor control systems. This module is an essential component for ensuring smooth and accurate operation in a variety of industrial automation scenarios. Its high-resolution performance (1024 PPR) ensures precise positioning and feedback, critical for applications requiring high accuracy.

    Designed for operation within a wide temperature range (-25°C to +60°C), this encoder module is suitable for various industrial environments. The robust construction allows it to withstand harsh conditions without compromising its operational integrity.

    Featuring an advanced EtherCAT communication interface, the module offers efficient data transfer speeds and reliable communication with other devices in the system. This ensures seamless integration with existing control networks, enhancing overall system performance.

    The ABB CMA131 – 3DDE300411 Encoder Module comes equipped with a MODBUS TCP/IP mechanical connection, providing versatile connectivity options. This feature facilitates easy installation and compatibility with a wide range of control systems, streamlining the setup process and reducing integration time.

    With its compact size and efficient power consumption (max 50mA), this encoder module is optimized for space-constrained environments without sacrificing performance. It’s an ideal choice for enhancing the efficiency and accuracy of your servo motor control systems.
