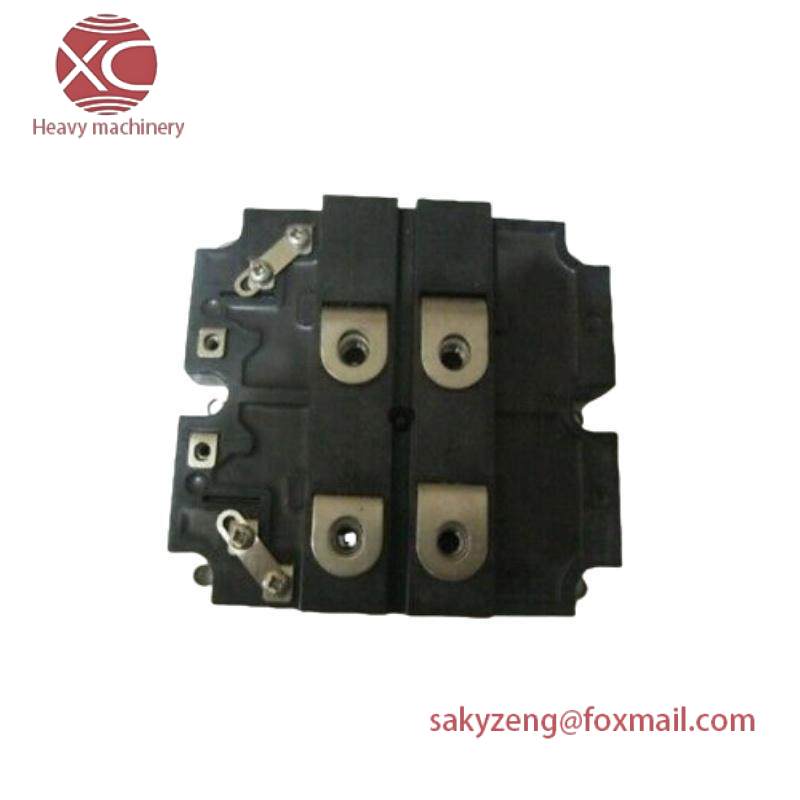

ABB 5SND0800M170100: High-Performance Dual HiPak IGBT Module for Industrial Control

Module Type:Dual HiPak IGBT

Model Number:5SND0800M170100

Power Rating:800A @ 1700V

Cooling Method:Thermal Conduction Cooling

Insulation Class:Class F

Operating Temperature Range:-40°C to +125°C

Input Interface:Opto-isolated digital signals

Control Signals:PWM frequency up to 20 kHz

    The ABB 5SND0800M170100 Dual HiPak IGBT Module is a cutting-edge solution for demanding industrial control applications, delivering exceptional performance and reliability in challenging environments.

    Engineered for high-power applications, this module is ideal for drives, inverters, and power conversion systems where efficiency and robustness are critical.

    Featuring an advanced thermal management system, it ensures optimal operation across a wide temperature range, from extreme cold to hot industrial settings.

    The module’s compact design facilitates seamless integration into existing systems, minimizing installation time and space requirements.

    With its robust insulation class F, the ABB 5SND0800M170100 ensures safety and reliability, making it suitable for applications where electrical isolation is essential.

    The standard digital control interface guarantees compatibility with a wide range of control systems, ensuring ease of integration and system-wide harmonization.
