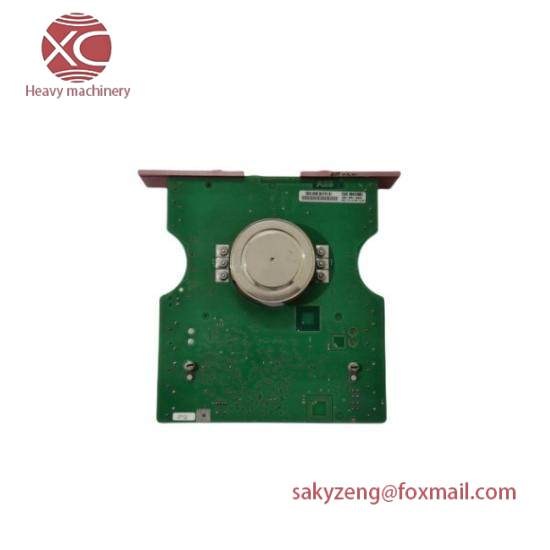

ABB 5SDF0460F0001, 416-005-1 IGBT Modules – Advanced Power Control Solutions

Operating Voltage:600 VDC

Current Rating:460 A

Switching Frequency:25 kHz

Insulation Class:Class 1

Temperature Range:-40°C to +125°C

Package Type:TO-247

Mounting Style:Through-hole

    The ABB 5SDF0460F0001, 416-005-1 IGBT Modules are engineered to deliver exceptional performance in a wide range of industrial settings. With an operating voltage of 600 VDC and a current rating of 460 A, these modules are designed for high-power applications requiring precise control.

    Featuring a switching frequency of 25 kHz, these modules ensure minimal losses and efficient energy management. They are equipped with a Class 1 insulation level, providing robust protection against electrical hazards, while their temperature range from -40°C to +125°C ensures reliability across various environmental conditions.

    Constructed with a TO-247 package type, these modules are compatible with standard mounting configurations, facilitating easy integration into existing systems. The through-hole mounting style simplifies installation and maintenance processes.

    Designed for long-term durability, the ABB 5SDF0460F0001, 416-005-1 IGBT Modules are ideal for applications requiring high-speed switching, low-loss operation, and exceptional thermal performance. Their advanced features make them suitable for use in electric drives, power electronics, and renewable energy systems.

    Backed by ABB’s commitment to quality and innovation, these IGBT modules undergo rigorous testing to meet stringent industry standards. Trust in ABB’s expertise to provide reliable, high-performance solutions for your most demanding industrial applications.
