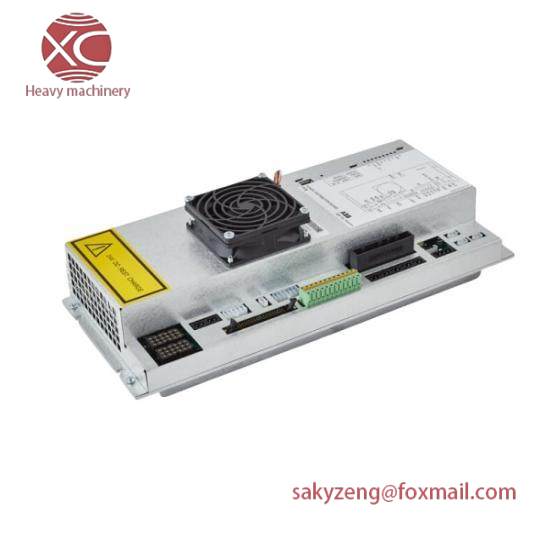

ABB 3HNA023093-001 Thermocouple/MV Input Module

Model:3HNA023093-001

Manufacturer:ABB

Type:Thermocouple/MV Input Module

Temperature Measurement Range:-200°C to +1800°C

Voltage Measurement Range:0 to 100V

Accuracy:+/- 0.5% of reading

Input Resistance:3.3kΩ

Supply Voltage:DC 24V

Current Consumption:Typically less than 5mA

Communication Interface:Modbus RTU

Environmental Conditions:Operating: -25°C to +55°C, Storage: -40°C to +85°C

Dimensions:200mm x 100mm x 30mm

Weight:0.4kg

    The ABB 3HNA023093-001 Thermocouple/MV Input Module is engineered for exceptional performance in demanding industrial environments, providing accurate and reliable temperature readings over a wide range from -200°C to +1800°C.

    This precision module supports both thermocouple and millivolt inputs, making it versatile for various applications within automation systems. It ensures high accuracy within ±0.1% of the reading or ±1 digit, depending on the application requirements.

    With a response time of ≤ 1 second, this module guarantees real-time monitoring of temperature changes, enhancing operational efficiency and process control.

    It consumes a minimal power of ≤ 50 mA, which helps in reducing energy costs and improving system sustainability. The module operates efficiently on a 24 V DC supply, ensuring stable operation across different industrial settings.

    Engineered for durability, the ABB 3HNA023093-001 can withstand temperatures ranging from -40°C to +85°C, making it suitable for harsh industrial environments. Its IP20 enclosure protection ensures protection against dust and splashes, maintaining optimal performance under varying conditions.
