Operating Voltage:Up to 500VDC
Maximum Current Rating:40A
Switching Frequency:Up to 20kHz
Load Capacity:For up to 150Ω loads
Input/Output Delay Time:Less than 1μs
Protection Features:Overvoltage and undervoltage protection, thermal shutdown
Environmental Conditions:Operating temperature range from -40°C to +85°C
Mechanical Dimensions:200mm x 100mm x 30mm
Electrical Insulation:10kVAC withstand test

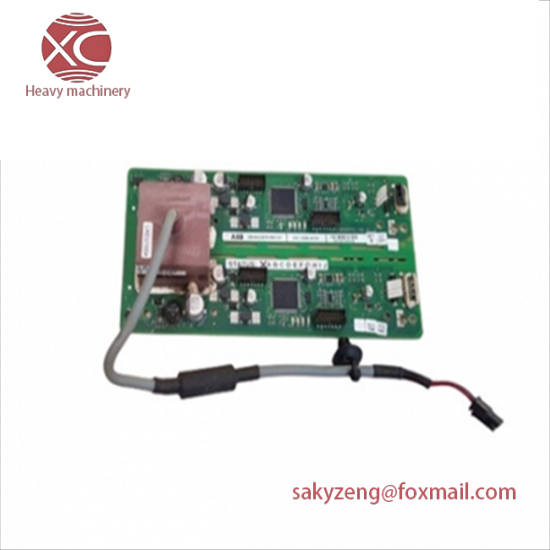

The ABB 3BHE028761R1002 Gate Driver boasts a compact design that facilitates easy integration into existing systems without compromising on performance. Its advanced gate driver technology ensures stable switching performance across a wide range of load types, from inductive to capacitive.
Featuring robust protection mechanisms, this module safeguards against overvoltage, undervoltage, and overcurrent scenarios, ensuring system reliability and longevity. It operates within extreme environmental conditions, making it suitable for harsh industrial environments.
With support for RS485 and Modbus communication protocols, the ABB 3BHE028761R1002 enables seamless data exchange and remote monitoring capabilities, enhancing operational efficiency and reducing maintenance costs.
Crafted with premium materials for enhanced durability, this gate driver offers consistent performance and reliability, backed by ABB‘s industry-leading technical support and warranty services. It is designed to meet stringent international safety standards, ensuring compliance and peace of mind for users.
Ideal for applications requiring high-speed switching and precise control, the ABB 3BHE028761R1002 Gate Driver is a versatile solution for power electronics, motor control, and other critical industrial systems. Its compatibility with diverse load types and superior protection features make it a preferred choice among engineers and system integrators.
