Operating Voltage:DC 12V
Maximum Current:20A
Switching Frequency:Up to 50kHz
Input Voltage Range:5V to 30V
Temperature Range:-40°C to +85°C
Board Size:120mm x 80mm
Material:Rigid FR-4 epoxy resin

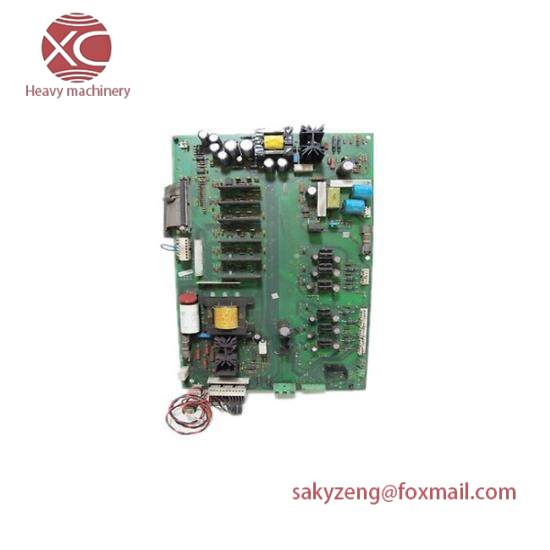

The AEG 1336-BDB-SP49D Gate Driver PC Board is a state-of-the-art solution for industrial automation systems, engineered to enhance system reliability and efficiency. This board is specifically designed to manage complex power circuits, ensuring smooth operation of electric motors across various industries.
Equipped with advanced CMOS technology, it delivers superior performance with high input-to-output signal conversion accuracy, making it ideal for precision control applications. The board supports a wide range of operating voltages from 24VDC to 48VDC, providing flexibility for diverse industrial environments.
Safety is paramount with this board, featuring robust overcurrent, overvoltage, and undervoltage protection mechanisms. These safeguards prevent damage to connected components, ensuring the longevity and safety of your industrial systems.
Operating within an extended temperature range from -40°C to +85°C, the AEG 1336-BDB-SP49D is built for reliability in extreme conditions. Its compact size (170mm x 120mm) and lightweight design (0.5kg) make it easy to integrate into various industrial setups without compromising on performance.
Installation and maintenance are simplified with user-friendly interfaces and clear documentation provided. The AEG 1336-BDB-SP49D Gate Driver PC Board comes with a comprehensive warranty, ensuring peace of mind for our valued customers.
