Operating Voltage (Nominal):360-480V
Input Frequency (Hz):47-63
Current Rating (Continuous):20.4A (rms)
Efficiency (%):98%
Short-Circuit Current Rating (rms):200,000A
Series Compatibility:A, B, C
Overload Support:Standard
Mounting Location:Leftmost side of the power rail
Temperature Range (°C):0…50
Relative Humidity (%):5…95% noncondensing
Altitude (m):Similar to other Kinetix modules
Vibration Range (Hz):5…55 @ 0.35 mm (0.014 in.) double amplitude

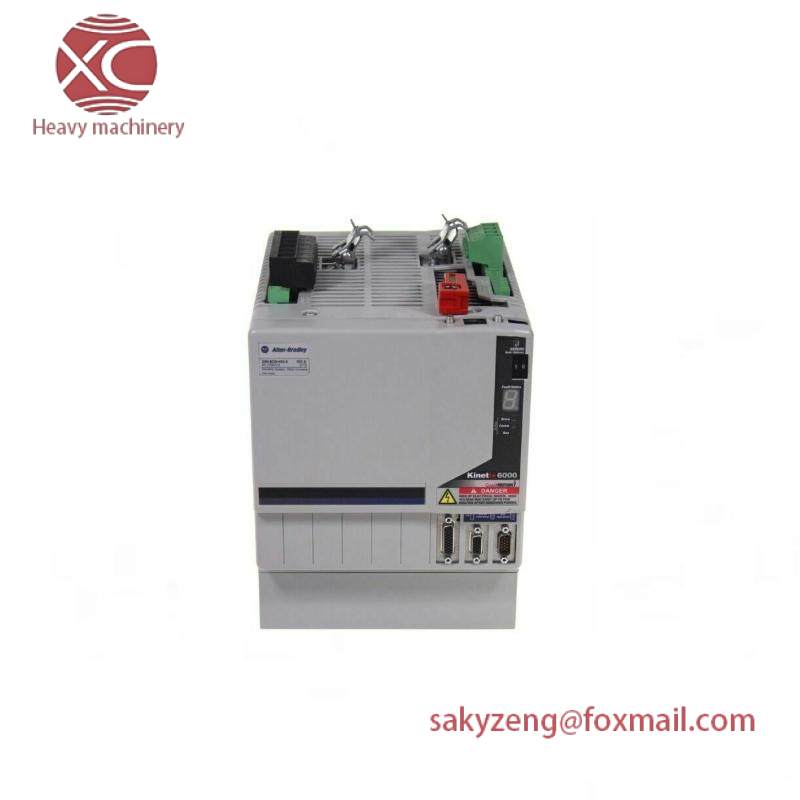

Engineered for maximum efficiency and reliability, the Allen-Bradley AB 2094-BC04-M03-M is an integral part of the Kinetix Multi-Axis Drive family, offering seamless integration with a wide range of industrial applications.
This module is designed to host major field connections including Contactor enable (CED) connector, DC bus/AC input power (IPD) connector, Control power (CPD) connector, Motor power (MP) connector, Motor/resistive brake (BC) connector, and I/O (IOD) connector, ensuring comprehensive functionality.
Featuring a robust and compact design, the AB 2094-BC04-M03-M is capable of interfacing with both rotary and linear motors through feedback cables, enhancing its versatility in various automation scenarios.
With an impressive efficiency of 98%, this integrated axis module ensures minimal energy loss, contributing to cost savings and environmental sustainability in industrial operations.
Equipped with a Safe Torque-off feature, the module guarantees safety during unexpected shutdowns or maintenance procedures, minimizing downtime and ensuring workplace safety.
