Model Type:Bridge Module
Manufacturer:Allen-Bradley
Model Number:1756-CNBD
Communication Protocol:ControlNet
Amperage Rating:Drawn: 970 MA at 5.1 VDC, 1.7 MA at 24 VDC
Isolation:30 V (Continuous)
Rfi Suppression:Radiated: 10 V/M with 1 KHZ sine-wave 80% AM from 80 – 2000 MHz
Temperature Rating:0 – 60 DEG C
Power Dissipation:5.1 W
Enclosure Type:Open Type
Connection Compatibility:Compliant shielded or unshielded twisted pair
Environmental Conditions:5 – 95% non-condensing relative humidity
Vibration Resistance:2 G
Shock Resistance:30 G

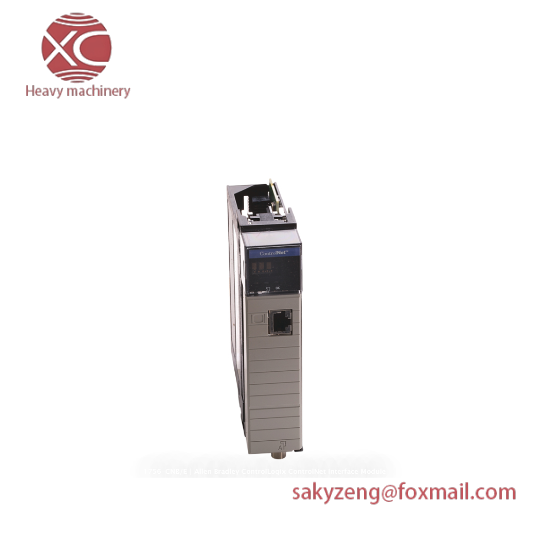

The Allen-Bradley 1756-CNBD ControlNet Bridge Module is designed for seamless integration into industrial automation systems, facilitating robust data exchange between ControlLogix PLCs and ControlNet networks.
Featuring advanced isolation technology, this module ensures reliable communication even in harsh industrial environments, reducing the risk of signal degradation.
With its open type enclosure, the module is compact yet durable, suitable for various installation scenarios without compromising on performance.
Equipped with efficient RFI suppression measures, it mitigates electromagnetic interference, ensuring stable operation amidst complex industrial settings.
This versatile module supports dual communication channels, providing redundancy and enhancing system reliability, crucial for critical applications where downtime cannot be tolerated.
Comprehensive testing at 500 VAC for 60 seconds ensures the module’s reliability under extreme conditions, backed by Allen-Bradley’s commitment to quality and safety standards.
