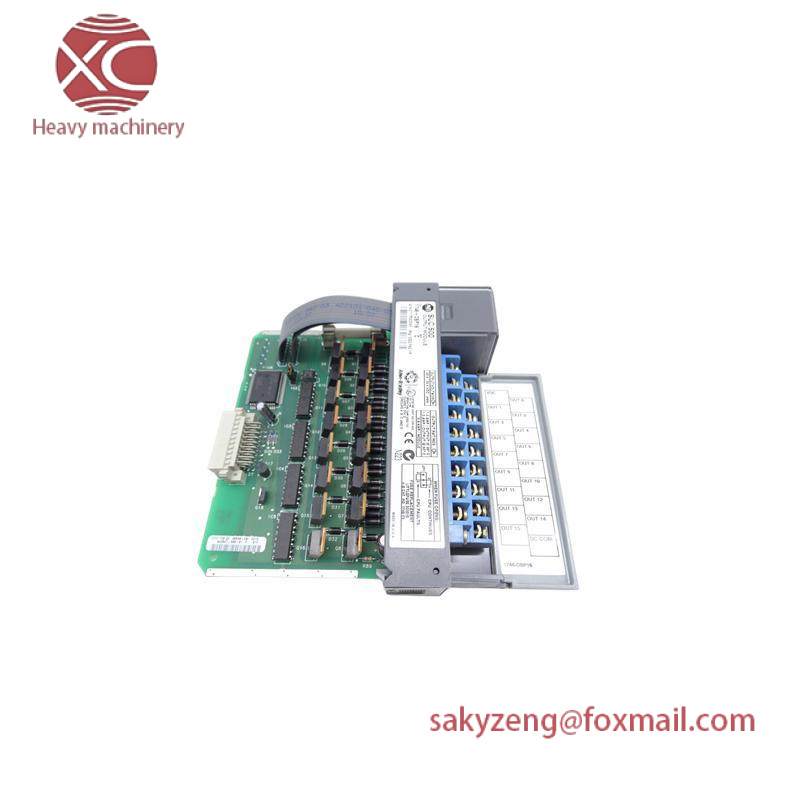

AB 1746-OBP16 | Digital DC Output Module – Allen Bradley

Model Type:Digital DC Output

Manufacturer:Allen-Bradley

Model Number:1746-OBP16

Number of Channels:16

Input Voltage:24 VDC

Output Voltage Range:10 – 50 VDC

On-State Voltage Drop:1.2 V

Off-State Output Leakage:1 MA

Load Capacity:1 MA

Current Rating:Backplane: 0.28 A, Continuous Current Per Output: 0.25 A @ 60°C, Continuous Current Per Module: 4 A @ 60°C

Isolation:Communication Circuits: 500 VDC, Backplane: 1500 VAC

Processor:SLC 500

Enclosure:Open Type

Mounting:Chassis

Temperature Rating:0 – 60°C

Environmental Conditions:5 – 95% Relative Humidity

    This Digital DC Output Module from Allen-Bradley is engineered to provide high reliability and precision in industrial automation applications, ensuring consistent performance under varying conditions.

    Equipped with 16 channels, this module is capable of delivering robust control signals to a wide range of devices, supporting both low and high voltage requirements.

    Featuring advanced isolation technology, the AB 1746-OBP16 ensures safe and efficient operation by preventing electrical interference and ensuring signal integrity across different components.

    Designed with an open type enclosure, this module allows for flexible installation within various industrial settings, accommodating diverse mounting and enclosure requirements.

    With a temperature rating of 0 to 60 degrees Celsius and environmental conditions ranging from 5 to 95%, this module is suitable for a broad spectrum of industrial environments, ensuring durability and longevity.

    Compliant with international safety standards, the Allen-Bradley AB 1746-OBP16 Digital DC Output Module is an essential component for achieving precise control and automation in modern industrial processes.
