Number of Channels:4
Output Range:0 – 20 mA
Operating Voltage:24 VDC ± 10%
Minimum Output Current:300 mA
Current Output Ranges:4 – 20 mA, 0 – 20 mA, 0 – 21 mA, 0 – 21.5 mA
Isolation:Backplane: 500 VDC
Enclosure:Open Type
Connection Cables:24 – 14 AWG
Mounting:Chassis
Status LED:Provided for easy monitoring
Power Supply Compatibility:Wide range DC power supply
Jumper Settings:Configurable jumper settings for various applications

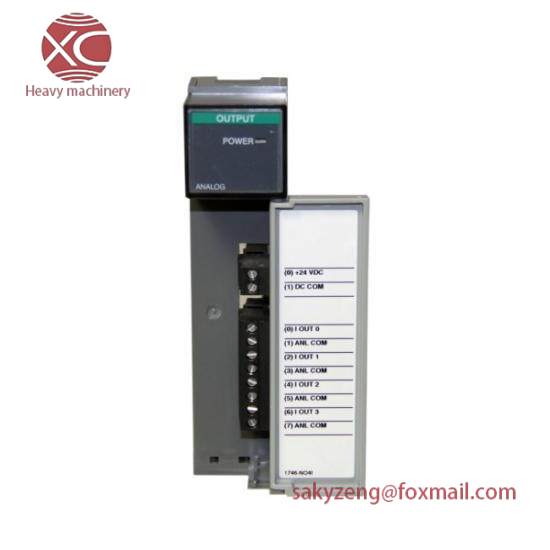

The AB 1746-NOI4I boasts a compact design that seamlessly integrates into various industrial environments, ensuring efficient space utilization without compromising performance. Its robust construction withstands the harsh conditions typically encountered in manufacturing floors.
This module supports a wide range of applications, from temperature control in HVAC systems to flow rate regulation in chemical processing plants, making it an indispensable component for enhancing process accuracy and efficiency.
With a resolution of 12 bits, the 1746-NOI4I provides exceptional precision in output, enabling fine-grained control over processes that demand high accuracy. Its ability to output either 0 to 10 V or 4 to 20 mA signals ensures compatibility with a broad spectrum of equipment.
Ease of installation and configuration is another highlight of this module. It supports Modbus RTU communication, simplifying integration with existing PLC systems and other automation devices. Detailed documentation and user-friendly interfaces facilitate quick setup and maintenance.
Safety and reliability are paramount with the AB 1746-NOI4I. It operates within a wide temperature range, from -20°C to +60°C during operation and -40°C to +85°C when stored, ensuring consistent performance under varying environmental conditions.
