Number of Channels:16
Common Mode Voltage Range:-20 to +20 V
Absolute Input Voltage:±7.5 VDC or ±7.5 VAC RMS (maximum)
Input Range:-20 to +20 mA
Absolute Input Current:-30 to +30 mA (maximum)
Voltage Rating:Overvoltage Protection: 7.5 VAC RMS
Current Rating:Backplane current draw: 55 mA
Isolation:Backplane: 500 VDC, Enclosure: Open Type
Power Rating:Backplane: 2.425 W, Enclosure: Open Type

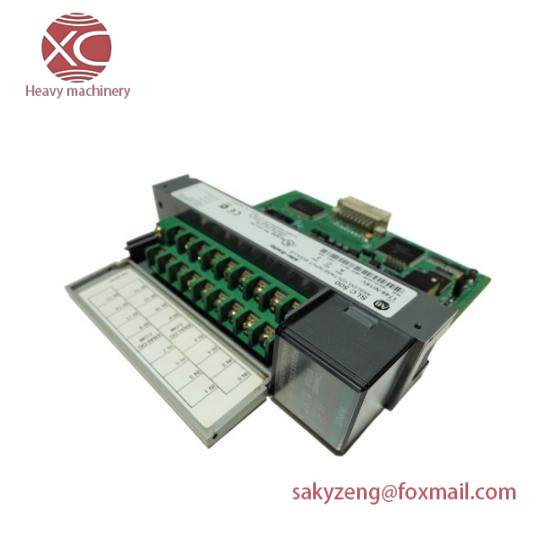

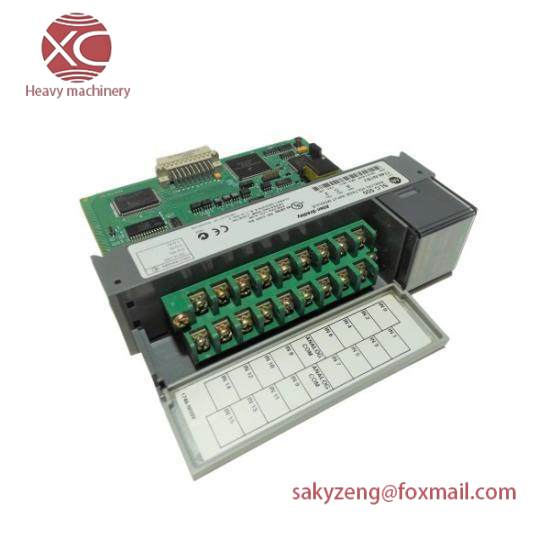

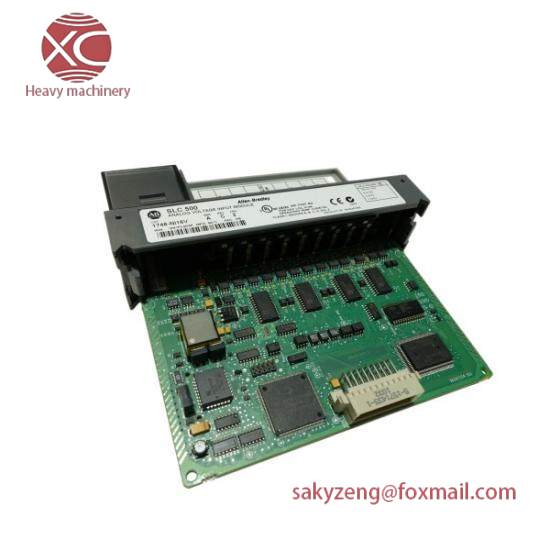

The Allen Bradley 1746-NI16V is engineered to deliver exceptional precision in industrial control environments. Its high-resolution design ensures accurate signal acquisition even under varying conditions, crucial for applications that demand utmost reliability.
Each of the 16 channels can measure a wide range of input voltages and currents, making it versatile enough to integrate with diverse industrial equipment. The robust overvoltage protection mechanism safeguards against potential damage caused by unexpected voltage spikes, ensuring continuous operation without interruption.
With an open-type enclosure, the module allows for easy integration into existing industrial setups, minimizing the need for extensive modification. This feature, combined with its compact size, makes it suitable for space-constrained areas in manufacturing plants.
The Allen Bradley 1746-NI16V is compatible with various communication protocols, including ControlNet, DeviceNet, and Universal Remote I/O links, when used with the appropriate I/O scanner module. This compatibility enhances its utility across different industrial automation systems, facilitating seamless integration and management.
Designed for durability and ease of maintenance, this module is an excellent choice for professionals seeking a reliable solution for their industrial control systems. Its advanced specifications, coupled with Allen Bradley’s reputation for quality, make it a preferred option among engineers and technicians worldwide.
